Booth Hydrometric DWG Block for AutoCAD

Booth Hydrometric DWG Block for AutoCAD

YOUR PRIMARY FUNCTION IS TO MEASURE THE FLOW OF WATER PIPE. ALSO IS LOCATED IN OR GROUNDS OF STORAGE RESERVOIRS .

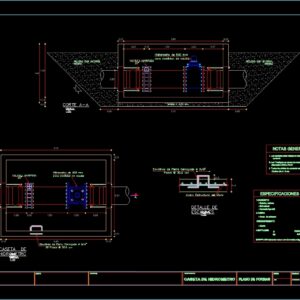

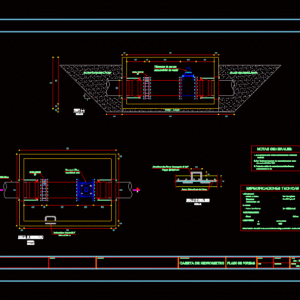

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Structural steel of the wall, Corrugated iron staircases, Steps cm, Staircase detail, scale:, Hydrometric house, Soles cm, Mm pipe, Plant view, scale:, Stuffing soil, structural, Splices, reinforcing steel, Technical specifications, Walls, MS type cement, Corrugated iron staircases, Steps cm, Stuffed with own material, cut, scale:, Mm hydrometer, Butterfly valve, : New concrete with old concrete by sikadur, General notes:, Contrary, Alternates, The measurements are given in meters unless otherwise indicated, The overlapping areas will be, All edges of reinforced concrete will have a, Chamflan of cm., For flow measurement, Stuffed with own material, Butterfly valve, Mm hydrometer, For flow measurement, Hydrometric house, client:, draft:, Plan nº:, code:, Sub project:, Cad:, design:, approved:, reviewed:, Rev, scale:, jun., contractor:, Shape plane

Raw text data extracted from CAD file:

\A1;0.35 \A1;1.50 \A1;1.65 \A1;0.10 \A1;0.15 \A1;0.15 \A1;0.15 \A1;2.30 \A1;0.57 \A1;0.15 \A1;0.58 \A1;0.15 \A1;0.58 \A1;0.12 \A1;0.15 \A1;0.15 \A1;2.80 \A1;3.10 \A1;2.00 \A1;0.57 \A1;0.15 \A1;0.15 \A1;2.80 \A1;0.50 \A1;1.00 \A1;0.50 \A1;1.00 \A1;0.50 \A1;0.15 \A1;0.50 \A1;3.10 \A1;0.50 Acero Estructural del Muro 5 5 Escalines de Fierro Corrugado d 3/4" Pasos @ 30.0 cm DETALLE DE ESCALINES ESCALA: 1/20 CASETA DE HIDROMETRO solado = 0.10 cm TUBERIA 500 mm VISTA PLANTA ESCALA: 1/20 - Solado y relleno 1.CONCRETO - Estructural EMPALMES d 2.ACERO - Acero de refuerzo 3.RECUBRIMIENTO 4.EMPALMES ESPECIFICACIONES TECNICAS fy= 4200 kg/cm2 f'c= 100 kg/cm2 f'c= 210 kg/cm2 6.0 cm - Muros - Cemento tipo MS 0.30 3/8 Escalines de Fierro Corrugado d 3/4" 06 Pasos @ 30.0 cm A 5 5 5 5 RELLENO CON MATERIAL PROPIO CORTE A-A ESCALA: 1/20 1 1 0.15 Hidrometro de 500 mm VALVULA MARIPOSA 20" 5.EMPALME :Concreto nuevo con Concreto antiguo mediante Sikadur 32 NOTAS GENERALES: contraria alternados OCTA-VC-01 1. Las medidas estan dadas en metros salvo indicación 2. Los Traslapes en zonas de momento maximo seran 3. Todas las aristas de concreto armado tendran un Chaflan de 2 x 2 cm. para medicion de caudal RELLENO CON MATERIAL PROPIO VALVULA MARIPOSA 20" A 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 Hidrometro de 500 mm para medicion de caudal CASETA DE HIDROMETRO CLIENTE: PROYECTO: PLANO Nº: CODIGO: SUB PROYECTO: PL - 01 CAD: DISEÑO: APROBADO: REVISADO: REV N°: ESCALA: 1/20 Jun. - 2014 CONTRATISTA: PLANO DE FORMAS 5 5 5

Language	Spanish
Drawing Type	Block
Category	Water Sewage & Electricity Infrastructure
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel, Other
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, booth, distribution, DWG, flow, fornecimento de água, function, grounds, kläranlage, l'approvisionnement en eau, located, measure, pipe, primary, storage, supply, treatment plant, wasserversorgung, water
