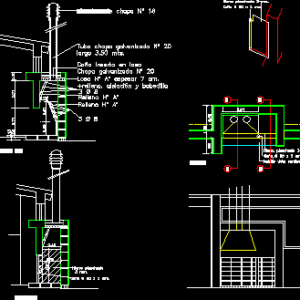

Bricks-Made Fireplace Stove DWG Block for AutoCAD

Bricks-Made Fireplace Stove DWG Block for AutoCAD

Fireplace stove with metalic chemny

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

masonry, scale:, date:, Aldrillo, Home: housing carlos paz, Gm constructions, Architects, flat:, Architects, Home: housing carlos paz, date:, Gm builder, doors, flat:, scale:, plane of, plant, cut, front view, Iron sheet mm., Pipe mm., F., Pipe inserted in slab galvanized sheet #, Tube galvanized plate length mts., Slab thickness a., Bobbull insulation, F., Iron sheet mm., Pipe mm., Brick seen sardinel, Cap plate no., cut, Iron sheet mm., Pipe mm.

Raw text data extracted from CAD file:

P1 1.00 2.05 \A1;3.20 -66.3039461188868 Mampostería Escala: 1:50 Fecha: 5/8/02 Aldrillo Obra: Vivienda Carlos Paz GM CONSTRUCCIONES A+G ARQUITECTOS Plano: A+G ARQUITECTOS 22/08/02 Obra: Vivienda Carlos Paz Fecha: GM CONSTRUCTORA PUERTAS Plano: Escala: 1:20 PLANO DE \A1;1.23 \A1;0.63 \A1;0.40 \A1;0.91 \A1;0.13 \A1;0.05 \A1;0.71 \A1;0.71 \A1;0.20 \A1;0.36 \A1;0.51 \A1;0.20 \A1;0.87 \A1;0.71 \A1;0.48 \A1;0.56 PLANTA CORTE 1-2 1 2 VISTA FRONTAL Hierro planchuela 3 mm. Caño O 50 x 2 mm. 5 5 5 5 3 Ø 8 Relleno Hº Aº 5 5 5 5 5 5 5 5 Caño inserto en losa Chapa galvanizada Nº 20 Tubo chapa galvanizada Nº 20 largo 3.50 mts. 3 Ø 8 Losa Hº Aº espesor 7 cm. +relleno, aislación y bobedilla Relleno Hº Aº Hierro planchuela 3 mm. Caño O 50 x 2 mm. ladrillo visto sardinel Sombrerete chapa Nº 18 CORTE 3-4 5 3 4 5 5 5 Hierro planchuela 3 mm. Caño O 50 x 2 mm.

Language	Spanish
Drawing Type	Block
Category	Climate Conditioning
Additional Screenshots
File Type	dwg
Materials	Masonry
Measurement Units
Footprint Area
Building Features	Fireplace, Car Parking Lot
Tags	aquecedor, aquecimento, autocad, block, boiler, bricks, chauffage, chauffe, DWG, fireplace, heater, heating, heizung, metalic, radiator, stove
