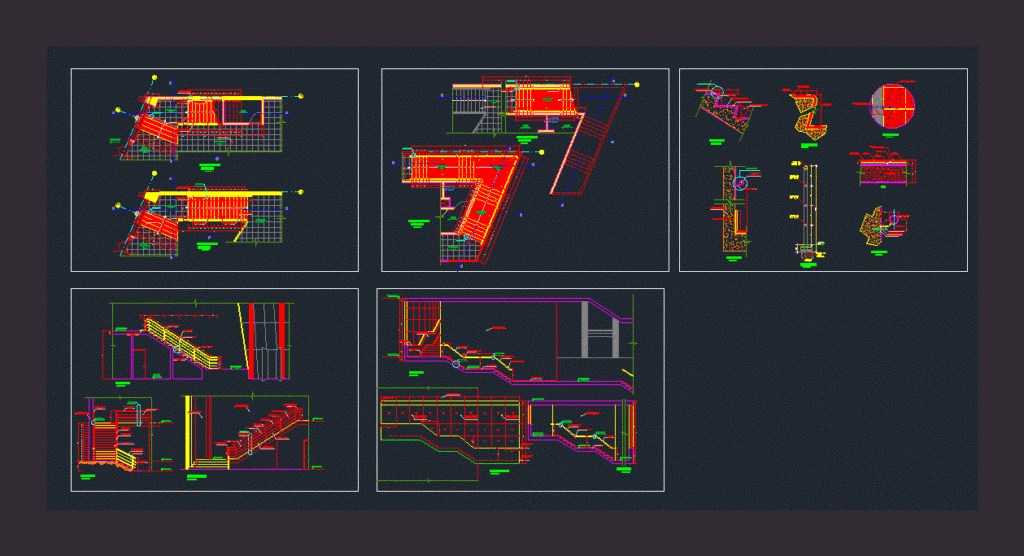

IS A PROJECT FOR BUILDING STAIRS; CONTAINS CONSTRUCTION DETAILS; ARCHITECTURAL PLANTS; CUTS AND OTHER DETAILS OF RAIL; STEPS ETC .

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Faith pipe, Platinum, Hilti expansion pad, Colorless tempered glass mm, Feather tube railing, Square tube of feº de, Painted concrete wall painted, elevation, scale, see detail, in the mine, N.p.t., hall, archive, N.p.t., ceramic floor, N.p.t., ceramic floor, Roof projection, N.p.t., ceramic floor, N.p.t., hall, ceramic floor, section, scale, stairs, section, scale, stairs, Feather tube railing, Stainless steel bracket, Feather tube railing, Square tube of feº de, Polished terrazzo, Painted concrete wall painted, Feather tube railing, Stainless steel bracket, Step of polished terrazzo, Exterior, N.p.t., N.p.t., ceramic floor, N.p.t., ceramic floor, N.p.t., Polished terrazzo floor, N.p.t., Polished terrazzo floor, N.p.t., Polished terrazzo floor, N.p.t., Polished terrazzo floor, N.p.t., ceramic floor, N.p.t., S.h.h., N.p.t., S.h.d., N.p.t., S.h.d., section, scale, stairs, section, scale, stairs, Feather tube railing, Stainless steel bracket, Feather tube railing, Polished terrazzo, see detail, in the mine, Polished terrazzo floor, Polished terrazzo, archive, N.p.t., Ceramic floor, N.p.t., Ceramic floor, cut, scale, Terrazzo counter, N.p.t., Feather tube railing, Feather tube railing, Painted concrete wall painted, see detail, in the mine, see detail, in the mine, Square tube of feº de, N.p.t., Painted concrete wall painted, cut, scale, cut, scale, Feather tube railing, Polished terrazzo, cut, scale, Feather tube railing, Polished terrazzo, Fe pas tube rail, N.p.t., Ceramic floor, N.p.t., Painted parapet painting, see detail, in the mine, Painted concrete wall painted, N.p.t., Feather tube railing, detail, scale, detail, scale, ceramic floor, Polished terrazzo width cm, Mm gasket, glue, Underfloor, Concrete slab, meeting, Polished terrazzo, meeting, ceramic floor, Iron wand, Painted concrete wall painted, see detail, Feather tube railing, detail, scale, Against polished terrazzo, Metal iron, welding, Hilti expansion pad, Feather tube railing, see detail, in the mine, see detail, in the mine, see detail, in the mine, Square tube of feº de, see detail, in the mine, see detail, in the mine, see detail, in the mine, see detail, in the mine, see detail, in the mine, Square tube of feº de, Polished terrazzo floor, Painted concrete wall painted, Polished terrazzo floor, see detail, in the mine, Iron pipe, anchorage, Platinum of faith, From griss, tempered glass, From griss, tempered glass, From griss, tempered glass, elevation, scale, Painted concrete wall painted, N.p.t., detail, scale, Feather tube railing, Square tube of feº de, detail, scale, Polished terrazzo floor, Step in polished terrazzo, Polished terrazzo countertop, Non-slip texture, see detail, detail, scale, Non-slip texture, Polished terrazzo, Iron wand, Stick of faith, Iron wand, Stick of faith, Iron wand, Stick of faith

Raw text data extracted from CAD file:

\A1;.050 \A1;.05 \A1;.03 \A1;.038 \A1;60° -60.95374349852949 -60.95374349852949 TUBO DE FE 40MM. PLATINA DE e=8MM. TACO DE EXPANSION HILTI -60.95374349852949 -60.95374349852949 -60.95374349852949 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;0.20 \A1;0.75 \A1;3.85 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;0.20 \A1;0.40 \A1;1.10 \A1;1.10 \A1;1.10 \A1;1.05 \A1;2.58 \A1;2.71 \A1;2.84 \A1;2.97 \A1;1.85 \A1;2.58 \A1;2.71 \A1;2.84 \A1;2.97 \A1;0.20 \A1;0.32 \A1;0.32 \A1;0.32 \A1;0.20 \A1;0.32 \A1;0.32 \A1;0.32 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;0.75 \A1;2.48 \A1;2.88 \A1;0.15 \A1;1.85 \A1;.275 \A1;4.13 \A1;.275 \A1;.275 \A1;3.85 \A1;.275 \A1;0.97 \A1;0.89 \A1;0.44 \A1;0.56 \A1;0.97 \A1;0.89 \A1;0.44 \A1;0.56 \A1;0.96 \A1;0.96 \A1;8.23 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;2.35 \A1;.275 \A1;.275 \A1;12.33 \A1;1.85 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;2.35 \A1;.275 \A1;.275 \A1;.275 \A1;4.27 \A1;1.10 \A1;2.05 \A1;1.10 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;2.35 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;3.31 \A1;67° \A1;7.88 \A1;3.02 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;1.59 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;0.20 \A1;1.30 \A1;8.31 \A1;1.85 \A1;1.85 \A1;1.85 \A1;1.85 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;0.20 \A1;1.10 \A1;2.05 \A1;1.10 \A1;1.10 \A1;1.10 \A1;1.26 \A1;1.10 \A1;2.05 \A1;1.10 \A1;0.69 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;2.35 \A1;.275 \A1;.275 \A1;.275 \A1;.275 \A1;4.55 \A1;3.50 \A1;0.65 \A1;0.25 \A1;57° \A1;.175 \A1;.175 \A1;.175 \A1;.175 \A1;.175 \A1;.175 \A1;.175 \A1;.175 \A1;.175 \A1;.175 \A1;.175 \A1;2.80 \A1;3.50 \A1;0.70 \A1;.175 \A1;.175 \A1;.175 \A1;.175 \A1;.175 \A1;0.90 \A1;1.59 \A1;67° \A1;.275 \A1;0.30 \A1;0.69 \A1;0.30 \A1;0.16 \A1;2.05 \A1;0.16 \A1;0.78 \A1;0.90 \A1;0.90 \A1;0.90 \A1;0.90 \A1;0.90 \A1;0.90 \A1;.05 \A1;.05 \A1;0.20 \A1;.05 \A1;0.25 \A1;.02 \A1;0.40 \A1;0.40 \A1;0.20 \A1;.075 \A1;45 \A1;.05 \A1;.025 \A1;.004 \A1;0.90 \A1;1.10 \A1;1.10 \A1;1.10 \A1;1.10 \A1;1.10 \A1;1.10 \A1;0.70 \A1;0.90 \A1;0.25 \A1;3.15 \A1;1.15 \A1;4.55 \A1;0.25 \A1;3.15 \A1;0.90 \A1;0.25 \A1;4.55 \A1;0.90 \A1;.025 \A1;.025 \A1;.025 \A1;a \A1;a \A1;a \A1;0.90 \A1;.075 \A1;0.25 \A1;1.10 \A1;1.00 \A1;1.00 \A1;1.00 \A1;1.00 \A1;1.00 \A1;1.00 \A1;1.00 \A1;1.00 \A1;1.00 \A1;0.90 \A1;1.40 \A1;1.75 \A1;1.15 \A1;1.00 \A1;0.88 \A1;1.10 \A1;1.11 \A1;4.55 \A1;0.88 \A1;1.30 \A1;1.30 \A1;1.30 \A1;1.30 \A1;5.21 \A1;a \A1;1.30 \A1;1.30 \A1;1.30 \A1;1.30 \A1;1.10 \A1;1.10 \A1;1.10 \A1;1.10 \A1;0.57 \A1;.225 \A1;.225 \A1;.225 \A1;.225 \A1;0.90 \A1;.225 \A1;.225 \A1;.225 \A1;.225 \A1;0.90 \A1;0.90 \A1;.225 \A1;.225 \A1;.225 \A1;.225 \A1;3.99 \A1;1.10 \A1;1.37 \A1;1.10 \A1;1.10 \A1;1.10 \A1;1.10 \A1;.175 \A1;.275 \A1;.05 \A1;.175 \A1;.175 \A1;.05 \A1;.18 \A1;.05 \A1;.05 CRISTAL TEMPLADO INCOLORO DE 6 mm CRISTAL TEMPLADO INCOLORO DE 6 mm PASAMANO DE TUBO DE Feº d2" PASAMANO DE TUBO DE Feº d2" PASAMANO DE TUBO DE Feº d2" TUBO CUADRADO DE Feº DE 1" TUBO CUADRADO DE Feº DE 1" TUBO CUADRADO DE Feº DE 1" MURO DE CONCRETO TARRAJEADO Y PINTADO ELEVACION A ESCALA 1/25 VER DETALLE 3 EN LAMINA DdE05 14 B 1 2 3 4 N.P.T. +2.45 m HALL ARCHIVO N.P.T. +2.45 m N.P.T. +3.15 m PISO CERAMICO 0.40 x 0.40 PISO CERAMICO 0.40 x 0.40 14 B 1 2 3 4 N.P.T. +3.15 m PISO CERAMICO 0.40 x 0.40 5 6 7 8 9 10 11 12 13 14 15 16 17 18 PROYECCION DE TECHO N.P.T. +5.95 m PISO CERAMICO 0.40 x 0.40 N.P.T. +2.45 m HALL PISO CERAMICO 0.40 x 0.40 5 6 7 8 9 10 11 TRAMO 1 ESCALA 1/25 ESCALERA D-1 TRAMO 2 ESCALA 1/25 ESCALERA D-1 .275 .275 .275 .275 .275 .275 .275 .275 .275 .275 .275 .275 .275 5 5 3.85 .275 .275 .275 .275 .275 .275 .275 .275 .275 .275 .275 .275 .275 0.20 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 .275 .275 .275 .275 .275 .275 .275 .275 .275 .275 .275 .275 .275 .275 .275 .275 .275 .275 .275 .275 .275 .275 .275 .275 .275 .275 5 5 5 5 1 1 PASAMANO DE TUBO DE Feº d2" SOPORTE DE ACERO INOXIDABLE 5 PASAMANO DE TUBO DE Feº d2" TUBO CUADRADO DE Feº DE 1" TERRAZO PULIDO TERRAZO PULIDO TERRAZO PULIDO 19 .275 5 .275 .275 5 .275 A A MURO DE CONCRETO TARRAJEADO Y PINTADO MURO DE CONCRETO TARRAJEADO Y PINTADO PASAMANO DE TUBO DE Feº d2" SOPORTE DE ACERO INOXIDABLE PASO DE TERRAZO PULIDO EXTERIOR N.P.T. +1.75 m 5 5 5 5 5 5 5 5 N.P.T. +2.45 m PISO CERAMICO 0.40 x 0.40 5 5 13 14 15 16 17 18 19 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 N.P.T. +5.95 m PISO CERAMICO 0.40 x 0.40 N.P.T. +6.825 m PISO DE TERRAZO PULIDO N.P.T. +6.825 m PISO DE TERRAZO PULIDO N.P.T. +7.70 m PISO DE TERRAZO PULIDO N.P.T. +8.575 m PISO DE TERRAZO PULIDO N.P.T. +9.45 m PISO CERAMICO 0.40 x 0.40 21 22 23 24 25 26 27 A A A A N.P.T. +5.95 m S.H.H. N.P.T. +5.95 m S.H.D. N.P.T. +9.45 m S.H.D. 8.23 .275 .275 .275 .275 5 .275 .275 12.33 5 .275 .275 .275 .275 2.35 .275 .275 .275 5 5 5 5 .275 .275 .275 .275 2.35 .275 .275 .275 .275 5 5 5 5 .275 .275 .275 .275 1.59 .275 .275 .275 .275 0.20 5 5 5 5 5 5 .275 .275 .275 .275 .275 .275 .275 .275 0.20 5 5 5 5 5 5 5 5 5 5 .275 .275 .275 .275 5 .275 .275 .275 .275 5 TRAMO 4 ESCALA 1/25 ESCALERA D-1 TRAMO 3 ESCALA 1/25 ESCALERA D-1 PASAMANO DE TUBO DE Feº d2" SOPORTE DE ACERO INOXIDABLE PASAMANO DE TUBO DE Feº d2" TERRAZO PULIDO 1 1 5 6 7 8 9 10 11 12 13 14 15 16 17 18 5 19 20 20 1 1 VER DETALLE 1 EN LAMINA DdE05 ZOCALO DE TERRAZO PULIDO ZOCALO h=0.75 TERRAZO PULIDO ARCHIVO N.P.T. +2.45 m N.P.T. +5.95 m PISO DE CERAMICO 0.40 x 0.40 N.P.T. +3.15 m PISO DE CERAMICO 0.40 x 0.40 5 5 2 2 2 2 5 CORTE 2-2 ESCALA 1/25 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 4 3 2 1 5 CONTRAPASO DE TERRAZO h=.175 5 N.P.T. +5.95 m N.P.T. +3.15 m N.P.T. +2.45 m 5 PASAMANO DE TUBO DE Feº d2" PASAMANO DE TUBO DE Feº d2" 5 PASAMANO DE TUBO DE Feº d2" PASAMANO DE TUBO DE Feº d2" MURO DE CONCRETO TARRAJEADO Y PINTADO .175 .175 .175 .175 .175 .175 .175 .175 .175 .175 .175 .175 .175 .175 .175 .175 VER DETALLE 2 EN LAMINA DdE05 VER DETALLE 3 EN LAMINA DdE05 TUBO CUADRADO DE Feº DE 1" N.P.T. +5.95 m N.P.T. +3.15 m N.P.T. +2.45 m MURO DE CONCRETO TARRAJEADO Y PINTADO 1 1 5 5 20 .275 2 2 2 2 CORTE 1-1 ESCALA 1/25 U U 5 5 5 31 32 33 34 36 37 38 39 35 40 CORTE 2-2 ESCALA 1/25 PASAMANO DE TUBO DE Feº d2" TERRAZO PULIDO CORTE 1-1 ESCALA 1/25 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 20 19 18 17 PASAMANO DE TUBO DE Feº d2" PASAMANO DE TUBO DE Feº d2" 5 5 5 5 TERRAZO PULIDO PASAMANO DE TUBO Feº d2" N.P.T. +7.70 m N.P.T. +11.75 m N.P.T. +7.70 m N.P.T. +8.575 m N.P.T. +5.95 m PISO DE CERAMICO 0.40x0.40 N.P.T. +6.825 m PARAPETO TARRAJEADO Y PINTANDO VER DETALLE 1 EN LAMINA DdE05 MURO DE CONCRETO TARRAJEADO Y PINTADO N.P.T. +9.45 m PASAMANO DE TUBO DE Feº d2" 5 5 5 5 5 DETALLE C ESCALA 1/5 DETALLE 4 ESCALA 1/20 0.40 0.40 PISO CERAMICO 0.40 x 0.40 TERRAZO PULIDO ANCHO 0.20 cm 0.20 JUNTA DE 1 mm 3 3 PEGAMENTO CONTRAPISO LOSA DE CONCRETO JUNTA 1mm 3-3 TERRAZO PULIDO JUNTA 1mm PISO CERAMICO 0.40 x 0.40 0.90 BARILLA DE FIERRO d3/8" MURO DE CONCRETO TARRAJEADO Y PINTADO VER DETALLE C PASAMANO DE TUBO DE Feº d2" .075 DETALLE 2 ESCALA 1/10 CONTRAZOCALO DE TERRAZO PULIDO PLANCHA METALICA 1"x1" SOLDADURA TACO DE EXPANSION HILTI .05 .05 45 PASAMANO DE TUBO DE Feº d2" .05 .025 0.20 .05 0.25 .004 .02 VER DETALLE 2 EN LAMINA DdE05 VER DETALLE 2 EN LAMINA DdE05 VER DETALLE 2 EN LAMINA DdE05 TUBO CUADRADO DE Feº DE 1" VER DETALLE 4 EN LAMINA DcE09 VER DETALLE 4 EN LAMINA DdE05 VER DETALLE 4 EN LAMINA DdE05 VER DETALLE 2 EN LAMINA DdE05 VER DETALLE 2 EN LAMINA DdE05 5 5 5 5 5 5 5 5 TUBO CUADRADO DE Feº DE 1" 0.90 5 5 5 5 ZOCALO DE TERRAZO PULIDO 5 5 5 5 5 MURO DE CONCRETO TARRAJEADO Y PINTADO 5 .025 .025 .025 2 3 4 ZOCALO DE TERRAZO PULIDO VER DETALLE 2 EN LAMINA DdE05 NPT+8.75 a a a 0.90 TUBO DE FIERRO 2" ANCLAJE PLATINA DE FE 50X50MM. .075 5 5 5 5 5 5 5 5 5 5 5 5 5 VF VF VF VF VF VF VF VF VF VF VF VF VF VF 5 5 5 5 VF VF VF VF NPT= +7.70 5 NPT= +11.75 5 NPT= +8.60 DE 8MM GRISS CRISTAL TEMPLADO DE 8MM GRISS CRISTAL TEMPLADO DE 8MM GRISS CRISTAL TEMPLADO ELEVACION U ESCALA 1/25 MURO DE CONCRETO TARRAJEADO Y PINTADO 5 5 N.P.T. +11.75 m VF VF VF 5 5 5 5 5 a 5 5 5 5 5 5 5 5 5 DETALLE 3 ESCALA 1/10 .225 .225 .225 .225 5 .225 .225 .225 .225 5 .225 .225 .225 .225 5 PASAMANO DE TUBO DE Feº d2" TUBO CUADRADO DE Feº DE 1" TUBO CUADRADO DE Feº DE 1" 5 5 5 5 5 5 5 DETALLE 1 ESCALA 1/20 .175 .175 .275 ZOCALO DE TERRAZO PULIDO PASO EN TERRAZO PULIDO CONTRAPASO DE TERRAZO PULIDO .05 .05 TEXTURA ANTIDESLIZANTE TEXTURA ANTIDESLIZANTE .18 VER DETALLE A DETALLE A ESCALA 1/5 .175 .05 .05 TEXTURA ANTIDESLIZANTE TERRAZO PULIDO TERRAZO PULIDO BARILLA DE FIERRO d3/8" VARILLA DE Feº d1/2" VARILLA DE Feº d1/2" VARILLA DE Feº d1/2" VARILLA DE Feº d1/2" VARILLA DE Feº d1/2" BARILLA DE FIERRO d3/8" BARILLA DE FIERRO d3/8" VARILLA DE Feº d1/2" VARILLA DE Feº d1/2" BARILLA DE FIERRO d3/8" VARILLA DE Feº d1/2" VARILLA DE Feº d1/2" VARILLA DE Feº d1/2"

Language	Spanish
Drawing Type	Full Project
Category	Stairways
Additional Screenshots
File Type	dwg
Materials	Concrete, Glass, Steel, Other
