Channels And Radiators DWG Block for AutoCAD

Channels And Radiators DWG Block for AutoCAD

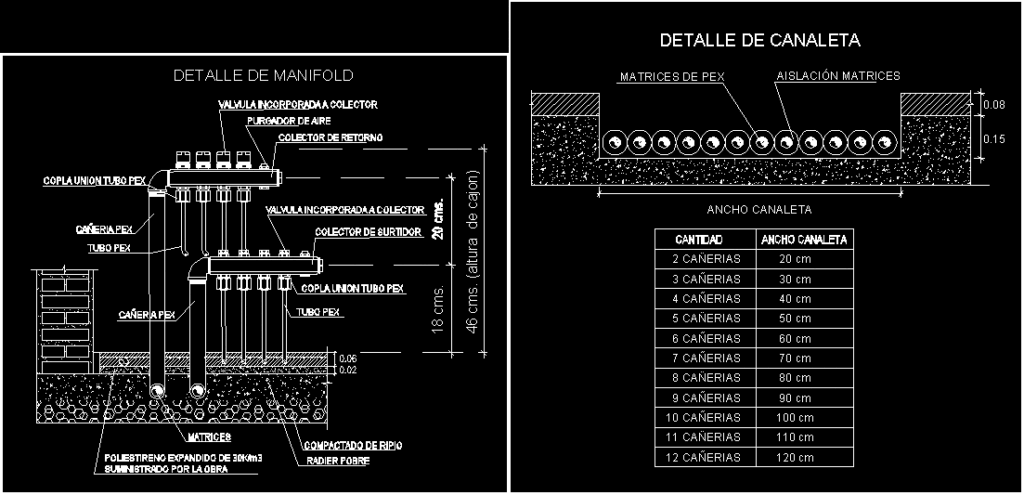

SYSTEM CHANNEL AND RADIATORS FOR EDIFICATION ; METHOD AND CLASS OF INSTALLATION .

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

pex pipe, pex tube, pex tube joint union, manifold detail, built-in manifold valve, pex pipe, pex tube, pex tube joint union, manifold manifold, built-in manifold valve, return manifold, air vent, compacted of gravel, poor rad, supplied by the work, matrices, expanded polystyrene, cms., cms. from, quantity, pipes cm, channel detail, insulation matrices, pex matrices, wide gutter, pipes cm, wide gutter

Raw text data extracted from CAD file:

CAÑERIA PEX TUBO PEX COPLA UNION TUBO PEX DETALLE DE MANIFOLD VALVULA INCORPORADA A COLECTOR CAÑERIA PEX TUBO PEX COPLA UNION TUBO PEX COLECTOR DE SURTIDOR VALVULA INCORPORADA A COLECTOR COLECTOR DE RETORNO PURGADOR DE AIRE COMPACTADO DE RIPIO RADIER POBRE SUMINISTRADO POR LA OBRA MATRICES POLIESTIRENO EXPANDIDO DE 30K/m3 0.06 0.02 20 cms. 18 cms. 46 cms. (altura de cajon) CANTIDAD 12 CAÑERIAS 120 cm 11 CAÑERIAS 110 cm 10 CAÑERIAS 100 cm 9 CAÑERIAS 90 cm 8 CAÑERIAS 80 cm 7 CAÑERIAS 70 cm 6 CAÑERIAS 60 cm 5 CAÑERIAS 50 cm 4 CAÑERIAS 40 cm 3 CAÑERIAS 30 cm 0.08 0.15 DETALLE DE CANALETA AISLACIÓN MATRICES MATRICES DE PEX ANCHO CANALETA 2 CAÑERIAS 20 cm ANCHO CANALETA

Language	Spanish
Drawing Type	Block
Category	Climate Conditioning
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	aquecedor, aquecimento, autocad, block, boiler, channel, channels, chauffage, chauffe, class, DWG, edification, heater, heating, heizung, installation, method, radiator, radiators, system
