CHIMNEY DETAIL PROJECT BANAKR AYOUB

Drawing labels, details, and other text information extracted from the CAD file (Translated from Italian):

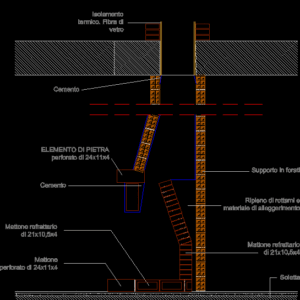

detail: vertical section of a fireplace, insulation, thermal. fiber of, glass, support in holes, stuffed with scrap, lightening material, refractory brick, insole, refractory brick, cement, brick, perforated by, stone element, perforated by, ladder

Raw text data extracted from CAD file:

Dettaglio: Sezione verticale di un camino Isolamento termico. Fibra di vetro Supporto in forati Ripieno di rottami e materiale di alleggerimento Mattone refrattario di 21x10,5x4 Soletta Mattone refrattario di 21x10,5x4 Cemento Cemento Mattone perforato di 24x11x4 ELEMENTO DI PIETRA perforato di 24x11x4 Scala 1:10

Language	N/A
Drawing Type	Full Project
Category	Climate Conditioning
