Chimney DWG Block for AutoCAD

Chimney DWG Block for AutoCAD

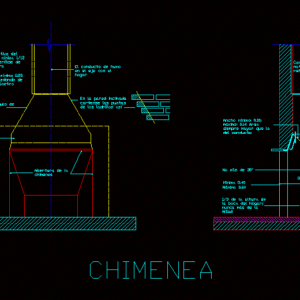

Fireplace cottage. Unique design

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

chimney opening, the smoke duct in the shaft with the hearth, effective area of the minimum of the surface area of the opening, minimum diameter round duct, wooden coverings far from the opening, angle of, on the inclined wall cut off the tips of the bricks, minimum width: maximum: area always greater than the duct, from the height of the mouth of the never more than half, minimum, maximum, no more than, refractory material conduit, chimney

Raw text data extracted from CAD file:

\A1;0.266 \A1;0,54 Abertura de la chimenea El conducto de humo en el eje con el hogar Area efectiva del conducto, mínima 1/12 de la suoerficie de la abertura Conducto mínimo 0.20 x 0.20 o redondo de 0.25 de diámetro Revestimientos de madera alejados de la abertura Angulo de 30° En la pared inclinada cortense las puntas de los ladrillos así Ancho mínimo: 0.10; máximo: 0.14 Area siempre mayor que la del conducto 1/3 de la altura de la boca del hogar; nunca más de la mitad Mínima 0.40 Máxima 0.60 No más de 30° Conducto de material refractario 0.266 5 CHIMENEA

Language	Spanish
Drawing Type	Block
Category	Misc Plans & Projects
Additional Screenshots
File Type	dwg
Materials	Wood
Measurement Units
Footprint Area
Building Features	Fireplace
Tags	assorted, autocad, block, chimney, cottage, Design, DWG, fireplace, home, unique
