Clips 3D DWG Model for AutoCAD

Clips 3D DWG Model for AutoCAD

3d Clips

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

bolts mm mm long. incl. nut, pin mm mm long., bolts mm mm long. incl. nut, pin mm mm long., of works projects, dist., huancayo, scale, prov., loc., draft, area, date, D.E.P., zone, archive, sheet, junin, October, administration, bolts mm mm long., mm long bolt., adaptation of the system of ap-, typical sector huancayo part iii, diameter for pastoral, nominal, long post, diameter to pole, pastoral clamps, simple double

Raw text data extracted from CAD file:

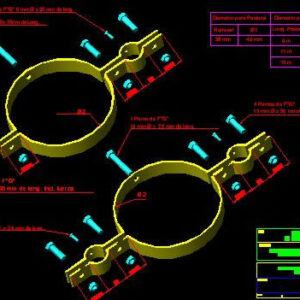

4 Pernos de F°G° 13 mm Ø x 50 mm de long. Incl. tuerca 1 Perno de F°G° 13 mm Ø x 75 mm de long. Ø2 3 Pernos de F°G° 13 mm Ø x 50 mm de long. Incl. tuerca 1 Perno de F°G° 6 mm Ø x 25 mm de long. de Proyectos y Obras Dist. Huancayo . . S / E . Escala Prov. Loc. Proyecto Area Fecha Dep. Zona Archivo Lamina N° . Junin Octubre 2005 - Administración 2 Pernos de F°G°, 6 mm Ø x 25 mm de long. 1 Perno de F°G° 13 mm Ø x 75mm de Long. Ø2 Adecuación del Sistema de AP a la NTCSE del Sector típico 2 / Huancayo - Parte III 40mm 50mm 50mm Ø1 50mm 50mm Ø1 50mm 50mm 50mm Ø1 Diametro para Pastoral Nominal Ø1 38 mm 49 mm Long. Poste Ø2 9 m 125 mm Diametro para Poste 11 m 157 mm 13 m 220 mm Abrazaderas de A° G° para pastoral Simple y Doble

Language	Spanish
Drawing Type	Model
Category	Industrial
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
