Closed Traverse DWG Block for AutoCAD

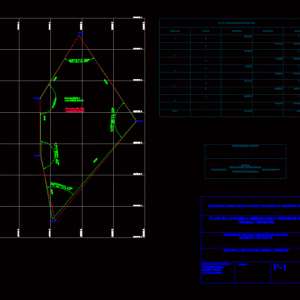

It is the job of a closed polygon on the waterfront of Puno where total station was used

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

corrected data of total station, station, points, angles, total, Andean university nestor caceres velazques cap. civil engineering, location: behind the terrestrial terminal, department: puno province: puno district: puno av.costanera, technical specifications, scale:

Raw text data extracted from CAD file:

147°23'13.40" 171°3'20.40" 50°27'10.40" DATOS CORREGIDOS DE ESTACION TOTAL ESTACION PUNTOS DISTANCIA1 DISTANCIA2 ANGULOS 1 5 164.8420 0 2 117.8020 65°27'3.39" 2 1 117.8370 0 3 91.0390 147°23'13.72" 3 2 91.0730 0 4 103.6890 171°03'20.42" 4 3 103.7140 0 5 205.8010 50°27'10.4" 5 4 205.8130 0 1 164.8770 147°23'13.72" TOTAL 683.2790 360° UNIVERSIDAD ANDINA NESTOR CACERES VELAZQUES CAP. INGENIERIA CIVIL PLANO DE LA POLIGONAL CERRADA CON 5 VERTICES EN EL TERMINAL TERRESTRE PRESENTADO POR: KENY RENZO ROJAS CATACORA SEMESTRE IV SECCION "B" UBICACION: A ESPALDAS DEL TERMINAL TERRESTRE DEPARTAMENTO:PUNO PROVINCIA:PUNO DISTRITO:PUNO AV.COSTANERA 65°27'3.39" 105°39'12.40" ESPECIFICACIONES TECNICAS EQUIPOS: ESTACION TOTAL GDT 7505 TOPCON GPS NAVEGADOR TEMPERATURA: 15°C COSNTATE DEL PRISMA:-30mm 5 5 5 5 5 Perimetro:683.26 m Area:23956.75m^ 2 Perimetro:684.75m Area:24460.00m^ 2 391100 E 391100 E 391150 E 391150 E 391200 E 391200 E 391250 E 391250 E 391300 E 391300 E 391350 E 391350 E 8247750 N 8247750 N 8247800 N 8247800 N 8247850 N 8247850 N 8247900 N 8247900 N 8247950 N 8247950 N 8248000 N 8248000 N 8248050 N 8248050 N 8248100 N 8248100 N Escala: P-1 164.85 205.80 103.70 91.10 117.83 punto1 punto-5 punto4 Punto3 punto2
