Collective Protection DWG Block for AutoCAD

Collective Protection DWG Block for AutoCAD

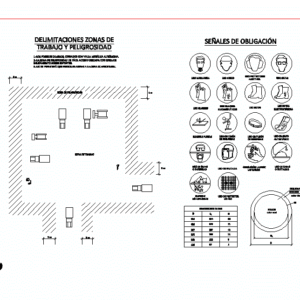

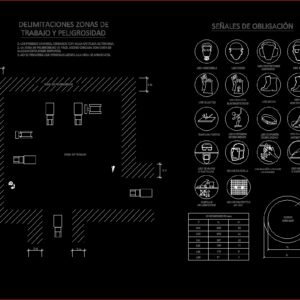

Plane over collective protections available on site; and to be included in a Health and Safety Study

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Delimitations areas of danger, Push not drag, Use of non-fixed protector, Use of glasses screens, Screen usage, Obligation to wash hands, Use of glasses screens, Use seat belt, Use antistatic footwear, Use seat belt, Eliminate tips, I wear a mask, Helmet use, Use electrostatic gloves, Wear gloves, I wear boots, Use electrostatic boots, I wear glasses, Wear ear protectors, Dimensions in mm, Blue background, White, Signs of obligation, Possible closed with autonomous metal fence. Danger zone of easy access fenced with marking tape on supports. Other people will be allowed to approach the work., Danger zone, work zone

Raw text data extracted from CAD file:

DELIMITACIONES ZONAS DE \LTRABAJO Y PELIGROSIDAD EMPUJAR NO ARRASTRAR USO DE PROTECTOR NO FIJO USO DE GAFAS O PANTALLAS USO DE PANTALLA OBLIGACIÓN LAVARSE LAS MANOS USO DE GAFAS O PANTALLAS USO CINTURÓN DE SEGURIDAD USO CALZADO ANTIESTÁTICO USO CINTURÓN DE SEGURIDAD ELIMINAR PUNTAS USO MASCARILLA USO CASCO USO GUANTES ELECTROSTÁTICOS USO GUANTES USO BOTAS USO BOTAS ELECTROSTÁTICAS USO GAFAS USO PROTECTORES AUDITIVOS DIMENSIONES EN mm D \A1;D\S^ 1; m 378 534 267 132 188 87 21 30 15 8 11 5 420 594 297 148 210 105 FONDO color azul \A1;D\S^ 1; \A1;D \A1;ESQUEMA \A1;REBORDE \A1;color blanco \A1;m SEÑALES DE OBLIGACIÓN 1.-LOS POSIBLES CAMINOS, CERRADOS CON VALLA METÁLICA AUTÓNOMA. 2.-LA ZONA DE PELIGROSIDAD DE FÁCIL ACCESO CERCADA CON CINTA DE BALIZAMIENTO SOBRE SOPORTES. 3.-NO SE PERMITIRÁ QUE PERSONAS AJENAS A LA OBRA SE APROXIMEN. ZONA DE PELIGROSIDAD ZONA DE TRABAJO 5 m 5 m 5 m 5 m 5 m

Language	Spanish
Drawing Type	Block
Category	Heavy Equipment & Construction Sites
Additional Screenshots
File Type	dwg
Materials	Glass, Other
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, block, capacete, casque, cerca, collective, d'une clôture, DWG, extincteur, extintor de incêndio, fence, feuerlöscher, fire extinguisher, health, helm, helmet, included, plane, protection, protections, safety, site, study, zaun
