Concrete Blicks System – DWG Detail for AutoCAD

Concrete Blicks System – DWG Detail for AutoCAD

wall fire resistent – Details – Technical specifications

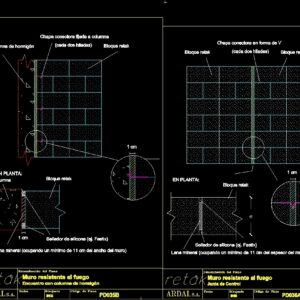

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

ardal, denomination of the plane ‘, in. id. Val. flat’, drawn in ch, s.a., firm’, technical plan of the company ‘, in. id. cartoonist’, date’, flat code ‘, ardal, designation of the plan, s.a., plan code, cartoonist, date, retak, concrete column, retak block, mineral wool a minimum of cm of the width of, two, connector plate fixed to column, silicone sealant, in plant:, retak block, column, imb, fire resistant wall, meeting with concrete column, imb, fire resistant wall, control board, retak block, in plant:, silicone sealant, connector plate in the form of, two, mineral wool a minimum of cm of the thickness of, retak block

Raw text data extracted from CAD file:

ARDAL DENOMINACION DEL PLANO' IN. ID. VAL. PLANO' Dibujado en CAD ' ' S.A. ' FIRMA' PLANO TECNICO DE LA EMPRESA' IN. ID. DIBUJANTE' ' FECHA' ' CODIGO DE PLANO' GG ' ' ARDAL Denominación del Plano S.A. Código de Plano Dibujante Fecha retak ® Columna de hormigón Bloque retak Lana mineral (ocupando un mínimo de 11 cm del ancho del muro) (cada dos hiladas) Chapa conectora fijada a columna 1 cm Sellador de silicona (ej. Fastix) EN PLANTA: Bloque retak Columna IMB PD035B Muro resistente al fuego Encuentro con columna de hormigón 1 cm IMB PD036A Muro resistente al fuego Junta de Control e Bloque retak EN PLANTA: Sellador de silicona (ej. Fastix) 1 cm Chapa conectora en forma de V (cada dos hiladas) Lana mineral (ocupando un mínimo de 11 cm del espesor del muro) Bloque retak Bloque retak

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	adobe, autocad, bausystem, concrete, construction system, covintec, DETAIL, details, DWG, earth lightened, erde beleuchtet, fire, losacero, plywood, resistent, specifications, sperrholz, stahlrahmen, steel framing, system, système de construction, technical, terre s, wall
