Constructive Detail Double Wall DWG Detail for AutoCAD

Constructive Detail Double Wall DWG Detail for AutoCAD

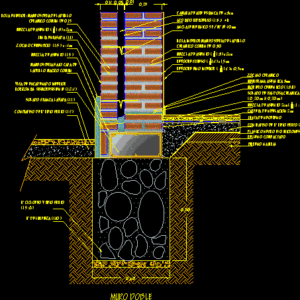

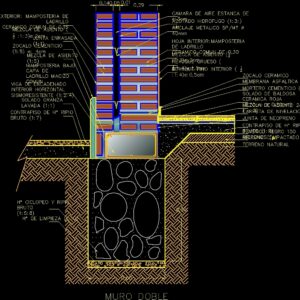

Constructive detail double wall in base

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Inside sheet: common ceramic brick masonry, seat, thick, fine interior, Waterproof air chamber, waterproof, metal, outer sheet: common ceramic brick masonry, ceramic, red ceramic tile, seat, leveling, neoprene, of hº raw gravel, compacted, black microns, natural, seat, flush, cement, asphalt, cementitious e:, seat, Chained bottom horizontal seismic resistant, washed pellets, of hº raw gravel, under a common solid brick layer, gross gravel cyclopean, cleaning, double

Raw text data extracted from CAD file:

0,05 0,80 0,14 0,29 0,01 0,60 HOJA INTERIOR:MAMPOSTERIA DE LADRILLO CERAMICO COMUN DE 0,30 \A1;MEZCLA DE ASIENTO (\S1/2;\H1.4286x; :1:3)e:2cm \A1;REVOQUE GRUESO (\S1/4;\H1.4286x;:1:4)e:1,5cm \A1;REVOQUE FINO INTERIOR ( \S1/2;\H1.4286x; :1:4)e:0,5cm CAMARA DE AIRE ESTANCA DE e:3cm \A1;AZOTADO HIDROFUGO (1:3:) +H \A1;ANCLAJE METALICO 5P/M² d 40mm HOJA EXTERIOR: MAMPOSTERIA DE LADRILLO \W5.09524; CERAMICO COMUN DE 0,15 5 \A1;ZOCALO CERAMICO \A1;SOLADO DE BALDOSA CERAMICA ROJA (0,20cm X 0,20cm) \A1;MEZCLA DE ASIENTO 2cm (\S1/4;\H1.4286x; : 1 : 3) \A1;CARPETA DE NIVELACION 2cm \A1;JUNTA DE NEOPRENO \A1;CONTRAPISO DE Hº RIPIO BRUTO (1:7) \A1;RELLENO COMPACTADO \A1;PLASTICO NEGRO 150 MICRONES (\A0;m\H0.7083x; \fCityBlueprint|b0|i0|c2|p2;\H1.4118x;) \A1;TERRENO NATURAL \A1;MEZCLA DE ASIENTO (\S1/2;\H1.4286x; :1:3)e:2cm \A1;JUNTA ENRASADA (1:1) \A1;MORTERO CEMENTICIO (1:3:H) \A1;MEMBRANA ASFALTICA 3mm \A1;ZOCALO CEMENTICIO (1:5) e: 4cm \A1;MEZCLA DE ASIENTO (1:5) \A1;VIGA DE ENCADENADO INFERIOR HORIZONTAL SISMORESISTENTE (1:2:4) \A1;SOLADO GRANZA LAVADA (1:1) \A1;CONTRAPISO DE Hº RIPIO BRUTO (1:7) \A1;MAMPOSTERIA BAJO CAPA DE LADRILLO MACIZO COMUN \A1;Hº CICLOPEO Y RIPIO BRUTO (1:5:8) 5 \A1;Hº DE LIMPIEZA (1:10) 5 5 5 \A1;MURO DOBLE 5

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Masonry, Plastic
Measurement Units
Footprint Area
Building Features
Tags	autocad, base, block, brick walls, constructive, constructive details, DETAIL, double, DWG, mur de briques, panel, parede de tijolos, partition wall, wall, ziegelmauer
