Cooling – Tubular Extractor DWG Detail for AutoCAD

Cooling – Tubular Extractor DWG Detail for AutoCAD

Cooling – Tubular Extractor – Details – Comparative table

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

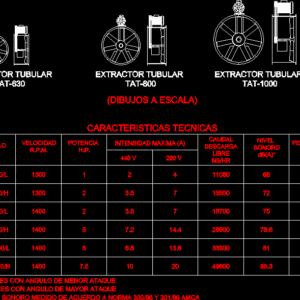

Tubular extractor, model, Speed r.p.m., H.p., Maximum intensity, Caudal free download, sound level, Weight approx. Kgs, Helices with angle of minor attack, Helices with angle of greater attack, Sound level measured according to standard amca, technical characteristics

Raw text data extracted from CAD file:

EXTRACTOR TUBULAR TAT-800 EXTRACTOR TUBULAR TAT-1000 EXTRACTOR TUBULAR TAT-630 MODELO VELOCIDAD R.P.M. POTENCIA H.P. INTENSIDAD MAXIMA (A) CAUDAL DESCARGA LIBRE M3/HR NIVEL SONORO dB(A)* PESO APROX. KGS 440 V 220 V TAT-630/L TAT-630/H TAT-800/H TAT-800/L TAT-1000/L TAT-1000/H 1300 1300 1400 1400 1400 1400 1 2 2 5 5 7.5 2 3.5 3.5 7.2 6.8 10 4 7 7 14.4 13.6 20 11080 15500 18700 28500 33300 49600 68 72 75 78.6 81 85.3 48 54 70 76 88 100 L= HELICES CON ANGULO DE MENOR ATAQUE H= HELICES CON ANGULO DE MAYOR ATAQUE * = NIVEL SONORO MEDIDO DE ACUERDO A NORMA 300/96 Y 301/96 AMCA CARACTERISTICAS TECNICAS (DIBUJOS A ESCALA)
