Detail joined panels – Covintec

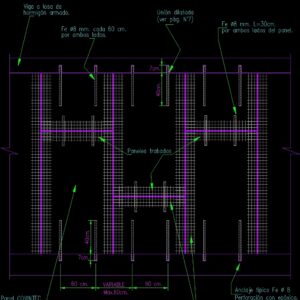

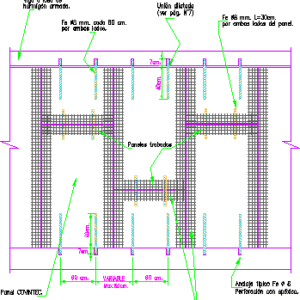

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

variable, cm., detail of panels locked covintec, dilated union, p., panel covintec., slab beam, fe mm. every cm., locked panels, reinforced concrete., on both sides., anchorage typical faith, bonding mesh, perforation with epoxy., fe mm., on both sides of the panel.

Raw text data extracted from CAD file:

40cm. 7cm. Max.60cm. VARIABLE 60 cm. 60 cm. 7cm. 40cm. DETALLE DE PANELES TRABADOS - COVINTEC Unión dilatada (ver pág. N°7) Panel COVINTEC. Viga o losa de Fe d8 mm. cada 60 cm. Paneles trabados hormigón armado. por ambos lados. Anclaje tipico Fe d 8 Malla de unión Perforación con epóxico. Fe d8 mm. L=30cm. por ambos lados del panel.
