Perpendicular union of walls

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

mesh corner., alternating every cm., squad, cover the iron., expanded polystyrene., polystyrene recess in zone, of so that the mortar, stapled fastened with, wire to panel covintec., expanded polystyrene., stucco., stucco., union of perpendicular walls covintec

Raw text data extracted from CAD file:

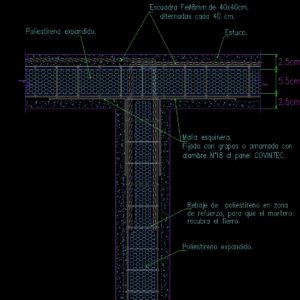

Malla esquinera. alternadas cada 40 cm. Escuadra Fed8mm.de 40x40cm. recubra el fierro. Poliestireno expandido. Rebaje de poliestireno en zona de refuerzo, para que el mortero Fijada con grapas o amarrada con alambre N°18 al panel COVINTEC. Poliestireno expandido. \A1;2.5cm 5.5cm Estuco. \A1;2.5cm Estuco. UNION DE MUROS PERPENDICULARES - COVINTEC
