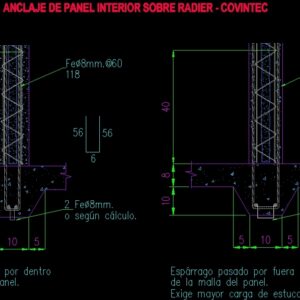

Anchorage of indoor panel over raider

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

interior panel anchorage over radier covintec, according to calculation., of the panel mesh., last asparagus inside, requires more stucco loading., past asparagus on the outside, of the panel mesh., according to calculation.

Raw text data extracted from CAD file:

\A1; ANCLAJE DE PANEL INTERIOR SOBRE RADIER - COVINTEC 118 2 Fed8mm. Fed8mm.@60 o según cálculo. de la malla del panel. Espárrago pasado por dentro 10 40 8 5 10 5 Exige mayor carga de estuco. Espárrago pasado por fuera de la malla del panel. 10 56 56 6 8 40 10 5 2 Fed8mm. o según cálculo. 5 56 56 8 L=120 Fed8mm.@60
