Covintec – Constructive System DWG Block for AutoCAD

Slab union with upper and lower wall – Covintec

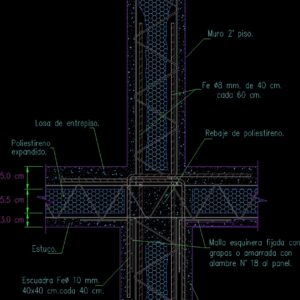

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

expanded., polystyrene recess, f., cm., polystyrene, expanded., stucco., wall floor, mesh fixed with, staples tied with, wire to panel., union of slab with lower upper wall covintec, mezzanine slab., wall floor, polystyrene recess., fe mm. cm., every cm.

Raw text data extracted from CAD file:

-2.105077926739643 3.0 cm 5.0 cm 5.5 cm -2.105077926739643 -2.105077926739643 \A1; expandido. Rebaje del poliestireno Escuadra Fed 10 mm. 40x40 cm.cada 40 cm. Poliestireno expandido. Estuco. Muro 1° piso. Malla esquinera fijada con grapas o amarrada con alambre N° 18 al panel. UNION DE LOSA CON MURO SUPERIOR E INFERIOR - COVINTEC Losa de entrepiso. Muro 2° piso. Rebaje de poliestireno. Fe d8 mm. de 40 cm. cada 60 cm.

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
