Expanded union to walls or concret beams – Covintec

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

cm., union dilated walls pillars of reinforced concrete covintec, expanded polystyrene mm., shot ladder, side, drill, pillar wall of, reinforced concrete, stonework mm., mm.cm, asparagus, mm., the asparagus must, of the perforation., remain free to the interior, dilatation, panel covintec, stucco mortar, polystyrene recess in zone, of reinforcement so that the mortar, cover the iron., expanded polystyrene

Raw text data extracted from CAD file:

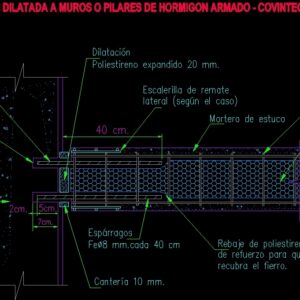

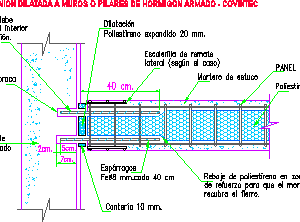

7cm. 2cm. 5cm. \A1;40 cm. UNION DILATADA A MUROS O PILARES DE HORMIGON ARMADO - COVINTEC Poliestireno expandido 20 mm. Escalerilla de remate lateral (según el caso) Perforar con broca Muro ó pilar de hormigón armado Cantería 10 mm. Fed8 mm.cada 40 cm Espárragos d10 mm. El espárrago debe (sin epóxico) de la perforación. quedar libre al interior Dilatación PANEL COVINTEC Mortero de estuco Rebaje de poliestireno en zona de refuerzo para que el mortero recubra el fierro. Poliestireno expandido
