Covintec – Constructive System DWG Block for AutoCAD

Expanded union to slabs or concret beams – Covintec

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

cm., polystyrene recess in zone, stonework mm., asparagus, mm.cm, expanded polystyrene, of reinforcement so that the mortar, cover the iron., the asparagus must, remain free to the interior, of the perforation., panel covintec, upper staircase, of lateral coronation., dilatation, expanded polystyrene mm., stucco mortar, plaster sky, mm., union dilated slabs concrete beams covintec, drill, mm., beams of reinforced concrete.

Raw text data extracted from CAD file:

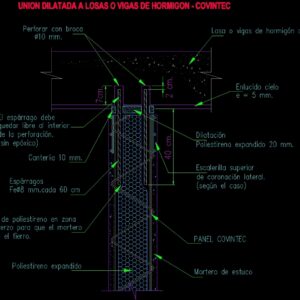

7cm. \A1;40 cm. \A1;2 cm. Rebaje de poliestireno en zona Cantería 10 mm. Espárragos Fed8 mm.cada 60 cm Poliestireno expandido de refuerzo para que el mortero recubra el fierro. El espárrago debe quedar libre al interior de la perforación. (sin epóxico) PANEL COVINTEC Escalerilla superior de coronación lateral. Dilatación Poliestireno expandido 20 mm. Mortero de estuco Enlucido cielo e = 5 mm. (según el caso) UNION DILATADA A LOSAS O VIGAS DE HORMIGON - COVINTEC Perforar con broca d10 mm. Losa o vigas de hormigón armado.

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
