Crane Cuts Social Center DWG Block for AutoCAD

Crane Cuts Social Center DWG Block for AutoCAD

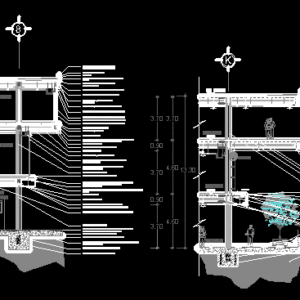

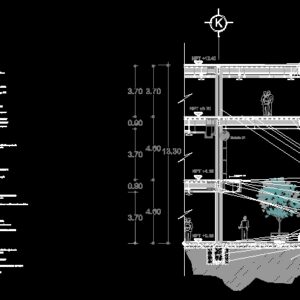

Cortes Crane showing material specifications and dimensions of a steel structure with walls made based on drywall.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Welding points of mm diameter, electrowelded mesh, The steel section zintro gauge on both sides, galvanized lid molding, caliber, pending, Ceramic tile type coral interceramic brand joined bone cem milking base gray integrated, materization, of exhibitions, pending, steel support holder, protection shirt, mm glass, stainless steel label, steel lacquer finish, spatial structure tube base, matt white epoxy paint, steel support holder, stainless steel label, mm glass, upper plate welded structure

Raw text data extracted from CAD file:

PUNTOS DE SOLDADURA DE DIAMETRO DE 20 mm MALLA ELECTROSOLDADA DE 6 X 6 10 X 10 LOSACERO SECCIÓN 4 CALIBRE 20 ZINTRO POR AMBAS CARAS MOLDURA TAPA GALVANIZADA CALIBRE 22 PENDIENTE 2% 8 \A1;NPT +4.10 \A1;NPT +8.70 \A1;NPT +12.40 \A1;NPT +0.15 \A1;3.70 \A1;0.90 \A1;3.70 \A1;0.90 \A1;3.70 \A1;4.60 \A1;4.60 \A1;3.70 \A1;13.30 8 \A1;NPT +4.10 \A1;NPT +8.70 \A1;NPT +12.40 \A1;3.70 \A1;0.90 \A1;3.70 \A1;0.90 \A1;3.70 \A1;4.60 \A1;4.60 \A1;3.70 \A1;13.30 Loseta Cerámica Tipo Coral Marca Interceramic de60x60cm junteado a hueso a base de lechereado de cem gris integrado Loseta Cerámica Tipo Coral Marca Interceramic de60x60cm junteado a hueso a base de lechereado de cem gris integrado \A1;Sala Materización \A1;Sala Materización \A1;Área de Exposiciones \A1;NPT +0.15 PENDIENTE 2% K \A1;NPT +4.10 \A1;NPT +8.70 \A1;NPT +12.40 \A1;NPT +0.15 \A1;3.70 \A1;0.90 \A1;3.70 \A1;0.90 \A1;3.70 \A1;4.60 \A1;4.60 \A1;3.70 \A1;13.30 PORTA SOPORTE DE ACERO CAMISA DE PROTECCION CRISTAL DE 9 mm ROTULA DE ACERO INOXIDABLE DE ACERO DE 2" DE DIAMETRO, ACABADO LACA ESTRUCTURA ESPACIAL A BASE DE TUBOS MATE BLANCA O PINTURA EPOXICA PORTA SOPORTE DE ACERO ROTULA DE ACERO INOXIDABLE CRISTAL DE 9 mm PLACA SUPERIOR SOLDADA A LA ESTRUCTURA \A1;Detalle 01 \A1;Detalle 01

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Glass, Steel
Measurement Units
Footprint Area
Building Features
Tags	autocad, based, block, center, construction details section, cortes, crane, cut construction details, cuts, dimensions, DWG, material, showing, social, specifications, steel, structure, walls
