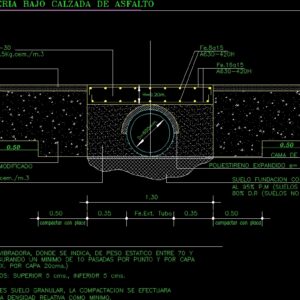

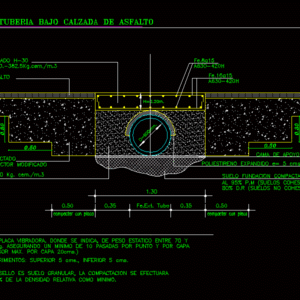

Cruze pipe under road

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Expanded polystyrene cms., Kg. Ensuring a minimum of passes per point per layer, Max. Per layer, Use plaque where static weight is between, Notes:, Compact with plate, To the modified proctor, Concrete kg., Compacted seal, Asphalt folder, Fe.ext tube, Crossing pipe under asphalt road, Grade concrete, Coatings: upper lower cms., If the seal is soil the compaction will be effected, To that of the relative density as a minimum., Compacted foundation floor, At m, D.r no, Support bed

Raw text data extracted from CAD file:

\A1;0.50 \A1;0.30 \A1;0.50 \A1;0.30 POLIESTIRENO EXPANDIDO e= 5 cms. 100 Kg. ASEGURANDO UN MINIMO DE 10 PASADAS POR PUNTO Y POR CAPA (ESPESOR MAX. POR CAPA 20cms.) 1.- USAR PLACA VIBRADORA, DONDE SE INDICA, DE PESO ESTATICO ENTRE 70 Y NOTAS: compactar con placa compactar con placa AL 95% PROCTOR MODIFICADO HORMIGON 170 Kg. cem./m.3 SELLO COMPACTADO CARPETA ASFALTO D=600mm. 0.50 0.35 Fe.Ext. Tubo 0.35 0.50 H=0.20m. A630-420H Fe.16a15 CRUCE TUBERIA BAJO CALZADA DE ASFALTO C/20% DE F.D.-382.5Kg.cem./m.3 HORMIGON GRADO H-30 A630-420H Fe.8a15 2.- RECUBRIMIENTOS: SUPERIOR 5 cms., INFERIOR 5 cms. 3.- SI EL SELLO ES SUELO GRANULAR, LA COMPACTACION SE EFECTUARA AL 80% DE LA DENSIDAD RELATIVA COMO MINIMO. 1.30 SUELO FUNDACION COMPACTADO AL 95% P.M (SUELOS COHESIVOS) O 80% D.R (SUELOS NO COHESIVOS) 0.50 0.30 0.50 0.30 CAMA DE APOYO

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Expanded polystyrene cms., Kg. Ensuring a minimum of passes per point per layer, Max. Per layer, Use plaque where static weight is between, Notes:, Compact with plate, To the modified proctor, Concrete kg., Compacted seal, Asphalt folder, Fe.ext tube, Cross pipe under asphalt road, Grade concrete, Coatings: upper lower cms., If the seal is soil the compaction will be effected, To the relative density as a minimum., Compacted foundation floor, At m, D.r., Support bed

Raw text data extracted from CAD file:

\A1;0.50 \A1;0.30 \A1;0.50 \A1;0.30 POLIESTIRENO EXPANDIDO e= 5 cms. 100 Kg. ASEGURANDO UN MINIMO DE 10 PASADAS POR PUNTO Y POR CAPA (ESPESOR MAX. POR CAPA 20cms.) 1.- USAR PLACA VIBRADORA, DONDE SE INDICA, DE PESO ESTATICO ENTRE 70 Y NOTAS: compactar con placa compactar con placa AL 95% PROCTOR MODIFICADO HORMIGON 170 Kg. cem./m.3 SELLO COMPACTADO CARPETA ASFALTO D=600mm. 0.50 0.35 Fe.Ext. Tubo 0.35 0.50 H=0.20m. A630-420H Fe.16a15 CRUCE TUBERIA BAJO CALZADA DE ASFALTO C/20% DE F.D.-382.5Kg.cem./m.3 HORMIGON GRADO H-30 A630-420H Fe.8a15 2.- RECUBRIMIENTOS: SUPERIOR 5 cms., INFERIOR 5 cms. 3.- SI EL SELLO ES SUELO GRANULAR, LA COMPACTACION SE EFECTUARA AL 80% DE LA DENSIDAD RELATIVA COMO MINIMO. 1.30 SUELO FUNDACION COMPACTADO AL 95% P.M (SUELOS COHESIVOS) O 80% D.R (SUELOS NO COHESIVOS) 0.50 0.30 0.50 0.30 CAMA DE APOYO

Language	Spanish
Drawing Type	Block
Category	Water Sewage & Electricity Infrastructure
Additional Screenshots
File Type	dwg
Materials	Concrete, Other
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, block, DWG, kläranlage, pipe, Road, treatment plant
