Cut wall detail

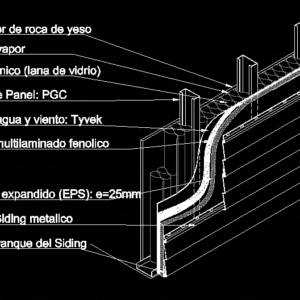

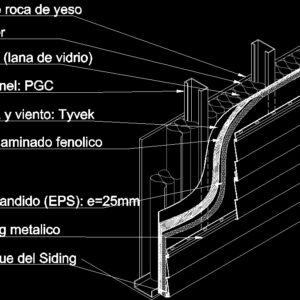

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

siding starter part, metal siding splint, expanded polystyrene, wind energy barrier: tyvek, substrate: phenolic multilaminate, panel amount: pgc, thermal insulation, vapor barrier, interior plaster rock plate

Raw text data extracted from CAD file:

Pieza de arranque del Siding Tablilla de Siding metalico Poliestireno expandido (EPS): e=25mm Barrera de agua y viento: Tyvek Substrato: multilaminado fenolico Montante de Panel: PGC Aislante térmico (lana de vidrio) Barrera de vapor Placa interior de roca de yeso
