Detail Connections DWG Detail for AutoCAD

Detail Connections DWG Detail for AutoCAD

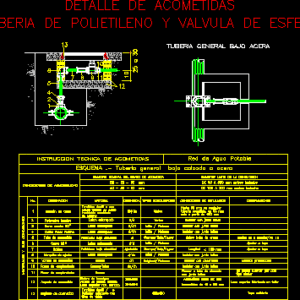

Connections of polyethylene in parcels – Technical instruction – Sphere valve

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Technical instruction of connection, Potable water network, Conditions of admissibility, Nominal diameter of the intake arm, Diameter of the conduction, Mm inclusive, do not., designation, material, dimension., Types approved, Installation conditions, observations, Take collar, various, Up to mm in any, Pipe in mm, Just starting from mm, Female reduction, Stamped brass, Install with teflon gasket, various, Male curve, Stamped brass, Isiflo platecsa, Install with teflon gasket, Connecting pipe, curve, coil, Adjustment cuff, Valve, Coupling thread, Coupling fitting, Casing, Connection log, On sand bed, Measured in, Stamped brass, Isiflo platecsa, Adjust stop, Low density polyethylene, adjustable, length, Stamped brass, Install with teflon gasket, bronze, Install with square, Sealable models, Install with teflon gasket, bronze, Tapping, With teflon gasket, Can be replaced by another, Similar type, Concrete screed, Solid brick elevation, Upper slab hor. armed, Connections up to mm, Mm rush, Upper slab manufactured in workshop, Ductile cast iron, Reinforced polyester with, fiberglass, Solidarity cap, Materials your conditions, Male thread connection, Stamped brass, Isiflo platecsa, Install with teflon gasket, General pipeline scheme under roadway sidewalk, Ductile cast iron, Flexible steel band, Coated stainless steel, of rubber, Detail of rush, Polyethylene pipe ball valve, General underfloor tubing

Raw text data extracted from CAD file:

INSTRUCCION TECNICA DE ACOMETIDAS Red de Agua Potable CONDICIONES DE ADMISIBILIDAD DIAMETRO NOMINAL DEL BRAZO DE ACOMETIDA DIAMETRO LIMITE DE LA CONDUCCION 2O - 25 - 32 mm 4O - 5O - 63 mm DE 8O A 3OO mm ambos inclusive DE 1OO A 3OO mm ambos inclusive No. DESIGNACION MATERIAL DIMENSION. TIPOS HOMOLOGADOS CONDICIONES DE INSTALACION OBSERVACIONES 1 2 3 Collarin de toma DN/dn Varios Hasta 5O mm en cualquier tuberia permitida, en 63 mm solo a partir de 15O mm Reduccion hembra Laton estampado Instalar con junta teflon D/d Varios Curva macho 9O o Laton estampado d/dn Isiflo / Platecsa Instalar con junta teflon 4 5 6 7 8 Tubo de acometida d Curva 9O o Bobina Manguito de ajuste Valvula de acometida 9 1O 11 12 13 Rosca de acoplamiento Racor de acoplamiento Arqueta de acometida Registro de acometida Sobre lecho de arena Medida en 0 exterior/PN 16 Laton estampado d/d Isiflo / Platecsa Isiflo / Platecsa Ajustar a tope Ajustar a tope Polietileno baja densidad Polietileno baja densidad Ajustable Longitud V 1OO mm Laton estampado d/dn Instalar con junta teflon Bronce dn Belgicast/Platecsa Instalar con cuadradito Modelos precintables Bronce/laton dn/dn Instalar con junta teflon Bronce Roscar a tubo de abonado con junta teflon Se puede sustituir por otro tipo similar Solera de hormigon Alzado de ladrillo macizo Losa superior hor. armado 252x252 346x346 Acometidas hasta 32 mm Acometidas de 4O a 63 mm Losa superior fabricada en taller Fundicion ductil / Poliester reforzado con fibra de vidrio 40Ox40O Tapa solidaria MATERIALES Y SUS CONDICIONES Enlace rosca macho Laton estampado d/dn Isiflo / Platecsa Instalar con junta teflon Saenger/Saip/Tuyper Saenger/Saip/Tuyper ESQUEMA .- Tuberia general bajo calzada o acera Fundicion ductil o con banda flexible de acero inoxidable recubierta de caucho o DETALLE DE ACOMETIDAS TUBERIA DE POLIETILENO Y VALVULA DE ESFERA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 4 25 a 3O 10 TUBERIA GENERAL BAJO ACERA 1 6 5 7 8 9 11 1O 13 12

Language	Spanish
Drawing Type	Detail
Category	Water Sewage & Electricity Infrastructure
Additional Screenshots
File Type	dwg
Materials	Concrete, Glass, Steel, Other
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, connections, DETAIL, distribution, DWG, fornecimento de água, kläranlage, l'approvisionnement en eau, parcels, polyethylene, sphere, supply, technical, treatment plant, valve, wasserversorgung, water
