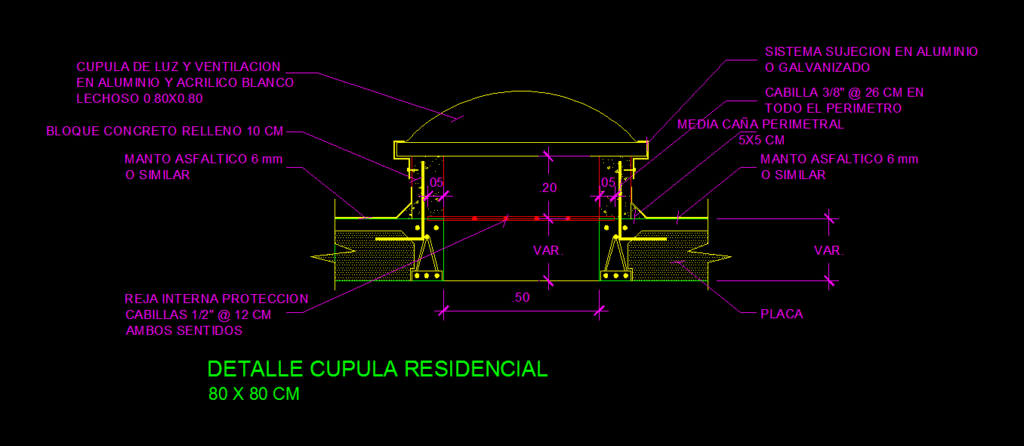

DETAIL CUPULA TRAGALUZ 80 CM FLAT PLATE; DOME LIGHT AND VENTILATION IN ALUMINIUM AND MILKY WHITE ACRYLIC 0.80X0.80

Drawing labels, details, and other text information extracted from the CAD file (Translated from Swedish):

where.

Raw text data extracted from CAD file:

\W7.24699; CABILLA 3/8" @ 26 CM EN \W7.27878; TODO EL PERIMETRO MEDIA CAÑA PERIMETRAL 5X5 CM \W7.15765; MANTO ASFALTICO 6 mm \W7.18943; O SIMILAR \W9.96134; CUPULA DE LUZ Y VENTILACION \W9.92698; EN ALUMINIO Y ACRILICO BLANCO \W9.93385; LECHOSO 0.80X0.80 \W8.11372; BLOQUE CONCRETO RELLENO 10 CM \W7.15765; MANTO ASFALTICO 6 mm \W7.18943; O SIMILAR \W8.30455; REJA INTERNA PROTECCION \W8.33892; CABILLAS 1/2" @ 12 CM \W8.39905; AMBOS SENTIDOS \W5.48325; PLACA \W9.78608; SISTEMA SUJECION EN ALUMINIO \W9.78351; O GALVANIZADO .05 .20 .05 VAR. .50 VAR. DETALLE CUPULA RESIDENCIAL 80 X 80 CM
