Detail Glass Anchorage DWG Detail for AutoCAD

Detail Glass Anchorage DWG Detail for AutoCAD

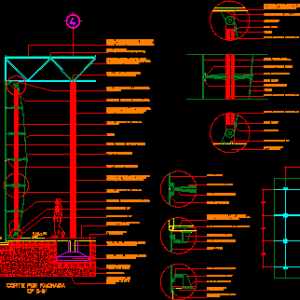

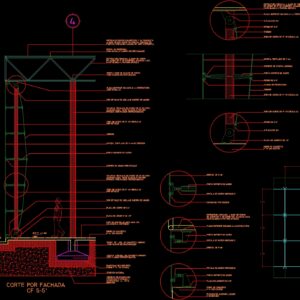

Detail anchorage of glass – Structur with posts and tensile – roofs

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

See detail of anchor body of spider, Steel support holder, Steel plate, Seat plate, Metal column of steel of diam., Matt white lacquer paint finish, Epoxy structural plans, Cedar steel tube, Compacted to, Improved terrain with, Top plate welded structure, Ultraviolet calorie ray system, Base of two layers of treated glass, Forming intermediate air chamber, Matt white epoxy paint, Steel lacquer finish, Spatial base structure of tubes, Detail plans, Neoprene profile, Reinforced concrete alloy lock, blueprints, Concrete template, poor, natural terrain, Base plate base plate, Marble floor white cm., Spider’s body see detail, blueprints, Thick tempered glass mm, Cedar steel tube, Placed cartabon, Firm concrete, Matt white lacquer paint finish, Metal column of steel of diam., Epoxy structural plans, blueprints, Isolated armed concert shoe, N.p.t., tensor, N.p.t., see detail, Proctor, see detail, Lacquered aluminum folding, Anodized, Top plate welded structure, Steel lacquer finish, Steel support holder, Protective shirt, Mm crystal, Stainless steel knob, Steel lacquer finish, Spatial base structure of tubes, Matt white epoxy paint, Steel support holder, Stainless steel knob, Mm crystal, Top plate welded structure, Seat plate, Steel support holder, Firm concrete, Stainless steel knob, Firm concrete, Seat plate, Cedar steel tube, Plate, Bolt of, Protective shirt, Tempered glass mm., tensor, Steel support holder, Glass holder, Bolt of, tensor, Plate, Cedar steel tube, Bolt of, Spatial base structure of tubes, Matt white epoxy paint, Cedar steel tube, Cut by facade

Raw text data extracted from CAD file:

1,15 8,3 0,1 1,15 1,15 1,15 1,15 1,15 1,07 0,13 0,18 1,08 2 1,15 1,15 1,15 VER DETALLE DE ANCLAJE CUERPO DE ARAÑA VER DETALLE DE ANCLAJE CUERPO DE ARAÑA PORTA SOPORTE DE ACERO PLACA DE ACERO DE 1/4" PLACA DE ASIENTO DE 1/2" COLUMNA METALICA DE ACERO DE 10" DE DIAM. ACABADO LACA MATE BLANCA O PINTURA EPOXICA (VER PLANOS ESTRUCTURALES F´c= 200 KG/CM2 TUBO DE ACERO DE 2" 1/2 CEDULA 40 COMPACTADO AL 95 % TERRENO MEJORADO CON (TEPETATE O SIMILAR) Y PLACA SUPERIOR SOLDADA A LA ESTRUCTURA SISTEMA DE RAYOS CALORIFICOS Y ULTRAVIOLETA A BASE DE DOS CAPAS DE CRISTAL TRATADO DE FABRICA, FORMANDO CAMARA DE AIRE INTERMEDIA MATE BLANCA O PINTURA EPOXICA DE ACERO DE 2" DE DIAMETRO, ACABADO LACA ESTRUCTURA ESPACIAL A BASE DE TUBOS (VER DETALLE PLANOS ESTRUCTURALES) PERFIL DE NEOPRENO TRABE DE LIGA DE CONCRETO ARMADO (VER PLANOS ESTRUCTURALES) PLANTILLA DE CONCRETO POBRE F´c= 100 KG/CM2 TERRENO NATURAL NODO A BASE DE PLACAS DE ACERO PISO DE MARMOL BLANCO 61x61 CM. CUERPO DE ARAÑA VER DETALLE (VER PLANOS ESTRUCTURALES) CRISTAL TEMPLADO DE 9 mm DE ESPESOR TUBO DE ACERO DE 2" 1/2 CEDULA 40 COLOCADO A CARTABON FIRME DE CONCRETO ACABADO LACA MATE BLANCA O PINTURA COLUMNA METALICA DE ACERO DE 10" DE DIAM. EPOXICA (VER PLANOS ESTRUCTURALES (VER PLANOS ESTRUCTURALES) ZAPATA AISLADA DE CONCERTO ARMADO 5 5 5 5 5 5 5 5 5 5 5 N.P.T. + 1.62 TENSOR N.P.T. + 1.80 VER DETALLE PROCTOR VER DETALLE 5 (VER DETALLE) PLEGADO DE ALUMINIO LACADO O ANODIZADO 5 PLACA SUPERIOR SOLDADA A LA ESTRUCTURA DE ACERO DE 2" DE DIAMETRO, ACABADO LACA PORTA SOPORTE DE ACERO CAMISA DE PROTECCION CRISTAL DE 9 mm ROTULA DE ACERO INOXIDABLE DE ACERO DE 2" DE DIAMETRO, ACABADO LACA ESTRUCTURA ESPACIAL A BASE DE TUBOS MATE BLANCA O PINTURA EPOXICA PORTA SOPORTE DE ACERO ROTULA DE ACERO INOXIDABLE CRISTAL DE 9 mm PLACA SUPERIOR SOLDADA A LA ESTRUCTURA PLACA DE ASIENTO DE 1/2" PORTA SOPORTE DE ACERO FIRME DE CONCRETO F´c= 200 KG/CM2 ROTULA DE ACERO INOXIDABLE 5 5 5 F´c= 200 KG/CM2 FIRME DE CONCRETO PLACA DE ASIENTO DE 1/2" TUBO DE ACERO DE 2" 1/2 CEDULA 40 2 PLACA DE 1/4" PERNO DE 5/6" CAMISA DE PROTECCION CRISTAL TEMPLADO DE 9 mm. TENSOR PORTA SOPORTE DE ACERO SOPORTE DE CRISTAL (ARANA) PERNO DE 5/6" TENSOR 2 PLACA DE 1/4" TUBO DE ACERO DE 2" 1/2 CEDULA 40 PERNO DE 5/6" ESTRUCTURA ESPACIAL A BASE DE TUBOS MATE BLANCA O PINTURA EPOXICA TUBO DE ACERO DE 2" 1/2 CEDULA 40 CF 5-5' CORTE POR FACHADA

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Aluminum, Concrete, Glass, Steel
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	anchorage, autocad, DETAIL, DWG, glass, posts, roofs, stahlrahmen, stahlträger, steel, steel beam, steel frame, structur, structure en acier, tensile
