Detail Of Cobblestone DWG Detail for AutoCAD

Detail Of Cobblestone DWG Detail for AutoCAD

Pavers

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

tel:, fax:, web: www.fsa.co.cr, address, integrated services in, engineering architecture, client, franz sauter associates s.a., approved, date, c. montoya, cartoonist, content, distribution plant, a.villalobos, archive, placement of paving stones, scale, bed of fine thin sand, compacted natural soil at b.p. cbr, joints filled with fine sand, concrete adoquin, base of compacted granular material at m.w. cbr, detail placement of the pavers

Raw text data extracted from CAD file:

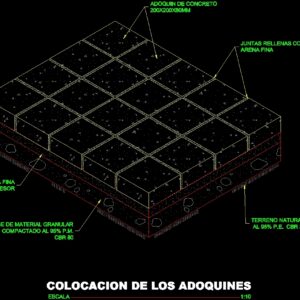

200 100 Tel: (506) 225-6733 E-mail: fsa@fsa.co.cr Fax: (506) 234-6866 web: www.fsa.co.cr DIRECCION Servicios Integrados en Ingeniería y Arquitectura CLIENTE - FRANZ SAUTER & ASOCIADOS S.A. C APROBÓ 05/06/02 FECHA 5 C. MONTOYA 1 DIBUJANTE CONTENIDO - PLANTA DE DISTRIBUCION A.VILLALOBOS ANSI_A ARCHIVO 200 100 COLOCACION DE LOS ADOQUINES ESCALA 1:10 CAMA DE ARENA FINA 100MM DE ESPESOR TERRENO NATURAL COMPACTADO AL 95% P.E. CBR 30 JUNTAS RELLENAS CON ARENA FINA ADOQUIN DE CONCRETO 200X200X80MM BASE DE MATERIAL GRANULAR COMPACTADO AL 95% P.M. CBR 80 542_C_ADOQUIN_01 542 DETALLE COLOCACION DE LOS ADOQUINES
