Detail Of Zapata DWG Detail for AutoCAD

Detail Of Zapata DWG Detail for AutoCAD

Zapata run

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

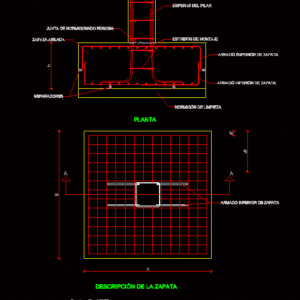

section, isolated footing, cleaning concrete, lower arm shoe, lower arm shoe, pillar reinforcement, pillar waits, rough concrete joint, pillar, mounting brackets, plant, reinforced upper shoe, separators, description of the shoe, zapata pillar dimensions: ang .: a: b:, number of pillar number of pillar type of shoe dimensions longxanchoxalto angle of rotation of the shoe number of bars diameter of bars spacing between bars length pin length length pin dimension dimension start type of dimension fin type of, shoe type

Raw text data extracted from CAD file:

\A1;A \A1;B \A1;df \A1;h \A1;di SECCIÓN A-A ZAPATA AISLADA HORMIGÓN DE LIMPIEZA ARMADO INFERIOR DE ZAPATA A A ARMADO INFERIOR DE ZAPATA ARMADO DEL PILAR ESPERAS DEL PILAR JUNTA DE HORMIGONADO RUGOSA PILAR ESTRIBOS DE MONTAJE A B PLANTA h ARMADO SUPERIOR DE ZAPATA SEPARADORES di df DESCRIPCIÓN DE LA ZAPATA Zapata n (P\Lxxx) \LTIPO Pilar \Lxxx (P\Lxxx) Dimensiones: \LAx\LBx\Lh Ang.: \Lalfa° A: l:\LnrØ\LDs\LS(\Llp1P+\Lla+\LlpfP)(\Ldi;\Ldf) B: l:\LnrØ\LDs\LS(\Llp1P+\Lla+\LlpfP)(\Ldi;\Ldf) n NÚMERO DE ZAPATA \Lxxx NÚMERO DE PILAR \LTIPO TIPO DE ZAPATA \LA,\LB,h DIMENSIONES LARGOxANCHOxALTO (cm) \Lalfa° ÁNGULO ROTACIÓN DE LA ZAPATA \Lnr NÚMERO DE BARRAS \LD DIAMETRO DE LAS BARRAS \LS SEPARACIÓN ENTRE BARRAS (cm) \Llp1 LONGITUD PATILLA INICIAL(cm) \Lla LONGITUD BARRA(cm) \Llpf LONGITUD PATILLA FINAL(cm) \Ldi COTA INICIO TIPO DE ARMADO(cm) \Ldf COTA FIN TIPO DE ARMADO)(cm) ZAPATA TIPO

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	autocad, base, DETAIL, DWG, FOUNDATION, foundations, fundament, run, shoe, zapata
