Detail Piling DWG Detail for AutoCAD

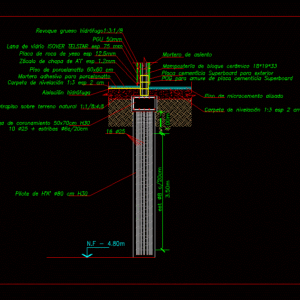

Construction detail Piling and capping beam

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

porcelanatto floor cm, its T, adhesive mortar for porcelanatto, cm leveling folder, waterproof insulation, subfloor over natural terrain, ceramic block masonry, crown beam, pile of cm, seat mortar, n.f, cement board superboard for outdoor, pog for amature of cementitious board superboard, thick plaster, pgu, plaster rock sheet, smooth micro-cement floor, cm leveling folder, glass wool isover telstar esp mm, stirrups, esp plate socket

Raw text data extracted from CAD file:

±0.00 \A1;est d8 c/10cm Piso de porcelanatto 60x60 cm 16 d25 est d8 c/10cm \A1;est d8 c/20cm \A1;3.50m \A1;1.00m Mortero adhesivo para porcelanatto Carpeta de nivelación 1:3 esp 2 cm Aislación hidrófuga Contrapiso sobre terreno natural 1:1/8:4:8 Mampostería de bloque cerámico 18*19*33 Viga de coronamiento 50x70cm H30 Pilote de H°A° d80 cm H30 Mortero de asiento N.F - 4.80m Placa cementicia Superboard para exterior POG para amure de placa cementicia Superboard Revoque grueso hidrófugo1:3:1/8 PGU 50mm Placa de roca de yeso esp 12.5mm Piso de microcemento alisado Carpeta de nivelación 1:3 esp 2 cm Lana de vidrio ISOVER TELSTAR esp 75 mm 10 d25 + estribos d6c/20cm Zócalo de chapa de A°I° esp 1.2mm

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Glass, Masonry
Measurement Units
Footprint Area
Building Features
Tags	autocad, base, beam, construction, constructive, DETAIL, DWG, FOUNDATION, foundations, fundament, piling
