Detail Post For Cctv 20 Metros DWG Detail for AutoCAD

Detail Post For Cctv 20 Metros DWG Detail for AutoCAD

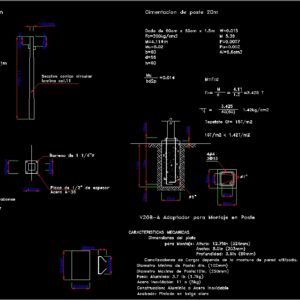

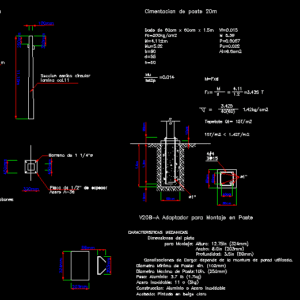

DETAIL POST FOR CCTV 20 metros; AND MECHANICAL FEATURES AND OF FOUNDATION.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Cctv post, Plate, Metal post, Conical section, Circular, Plate, thickness, Set of bevels, of thickness, Metal pole of, Circular conical section, sheet, Hole of, Thick plate, steel, Post foundation, Given from, Tepetate, Plate dimensions, For mounting:, height:, width:, depth:, Charging pipes: depends on the wall mount used., Minimum pole diameter:, Maximum diameter, Weight: aluminum: lb, stainless steel:, Construction: aluminum stainless steel, Finish: painted in light beige, Mechanical characteristics, Pole mount adapter

Raw text data extracted from CAD file:

9.0m 100mm 200mm 450mm 320mm 320mm 100mm 250mm 300mm 11.10m 450mm 400mm 1.4m 1.3m 203mm 89mm 203mm 100mm 120mm 11.00m 20cm 10cm 60cm 10cm 324mm 60cm 40cm 60cm 40cm 12.7mm N Poste para CCTV de 20m Placa de 1/4" A-36 de 5d Poste metalico seccion conica circular de L=11.1m placa de 3/16" A-36 espesor 4.65mm Juego de 4 cartabones de 200x100mm de 1/4" espesor Poste metalico de 32cm x 32cm L=9.05m 120mm 11.00m 9.0m 100mm 200mm 450mm 320mm 320mm Seccion conico circular lamina cal.11 100mm 250mm 300mm 11.10m Barreno de 1 1/4"d 450mm 400mm Placa de 1/2" de espesor Acero A-36 Cimentacion de poste 20m Dado de 60cm x 60cm x 1.5m Fc=200kg/cm2 M=4.11±m Mu=5.02 b=60 d=55 h=60 W=0.015 M 5.39 P=0.0007 Pu=0.002 Al=6.6cm2 Mu bd2p =0.014 M=Fxd Fx= M d 4.11 1.2 = =3.425 T = 3.425 40(60) 1.42kg/cm2 Tepetate Qt= 15T/m2 15T/m2 < 1.42T/m2 1.4m 1.3m 20cm 10cm 60cm 10cm d1" 324mm 203mm 89mm 203mm 100mm 60cm 40cm 60cm 40cm 4#4 3@15 12.7mm Dimensiones del plato para Montaje: Altura: 12.75in (324mm) Ancho: 8.0in (203mm) Profundidad: 3.5in (89mm) Canalizaciones de Carga: depende de la montura de pared utilizada. Diametro Minimo de Poste: 4in. (102mm) Diametro Maximo de Poste:10in. (250mm) Peso: Aluminio: 3.7 lb (1.7kg) Acero Inoxidable: 11 o (5kg) Construccion: Aluminio o Acero Inoxidable Acabado: Pintado en beige claro CARACTERISTICAS MECANICAS V20B-A Adaptador para Montaje en Poste d1"

Language	Spanish
Drawing Type	Detail
Category	Water Sewage & Electricity Infrastructure
Additional Screenshots
File Type	dwg
Materials	Aluminum, Steel
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, cctv, DETAIL, DWG, features, FOUNDATION, kläranlage, mechanical, post, telecommunications, tower, treatment plant
