Detail Public Faucet DWG Detail for AutoCAD

Detail Public Faucet DWG Detail for AutoCAD

Faucet installation against faucet at publishes road

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

base, Rubber stamp, Fire hydrant, Standard column type emos., Pressure of, detail, Weight approx. Kg, detail, stop, prisoner, nozzle, Packing, Take chain, Nozzle cover, head, cap screw, Parker, cap screw, Support plate, Sealing washer, Valve plate, Circlips, Rador, crown, stem, denomination, chain, body, Detail faucet without scale

Raw text data extracted from CAD file:

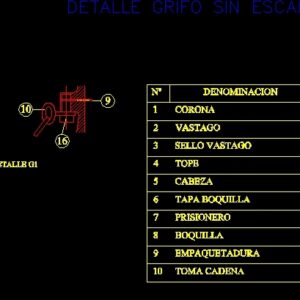

9 16 10 17 BASE 13 3 SELLO VASTAGO CONTRA INCENDIOS HIDRANTES TIPO COLUMNA BRIDA, NORMA EMOS. PRESION DE TRABAJO=10 kG/CM2 DETALLE G2 PESO APROX. 78 kG DETALLE G1 TOPE PRISIONERO BOQUILLA EMPAQUETADURA TOMA CADENA TAPA BOQUILLA CABEZA 4 6 9 8 10 7 5 PERNO ½" x 2 PARKER ½" x 2 PERNO 5/16" x 1" PLATO SOPORTE ARANDELA OBTURACION PLATO VALVULA 14 CIRCLIPS RADOR 15 16 18 19 20 17 21 3 G2 21 18 20 19 CORONA VASTAGO Nº 2 1 DENOMINACION DENOMINACION CADENA CUERPO Nº 11 12 DETALLE GRIFO SIN ESCALA

Language	Spanish
Drawing Type	Detail
Category	Water Sewage & Electricity Infrastructure
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features	Garden / Park
Tags	autocad, bombeiro, d'incendie, DETAIL, DWG, faucet, feuerwehrmann, firefighter, hidrantes instalação, hydrant, hydranten, incendio, installation, installation feuer, installing fire, kläranlage, le feu d'installer, pompier, PUBLIC, Road, treatment plant
