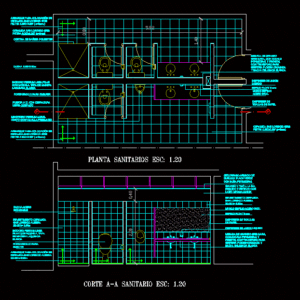

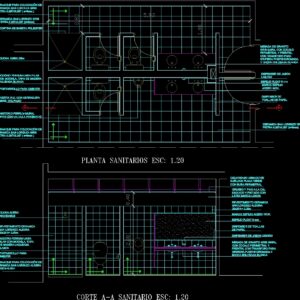

Detail Public Restroom DWG Detail for AutoCAD

Detail Public Restroom DWG Detail for AutoCAD

Public toilets in commercial

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

porting to embed, toilet ferrum line pillar with lacquered white wood cap, fine thickness lime painted latex loxon, mirror frame stainless steel., mirror float mm, gray granite countertop with perimeter socle with transformer for taps bacha tiled white, paper towel dispenser, liquid soap dispenser, ceramic coating san lorenzo glad, green durlock ceiling with perimetral burial panel, stainless steel shower, ceramic san lorenzo gris pietra, gray granite countertop with perimeter socle with transformer for taps bacha tiled white, liquid soap dispenser, paper towel dispenser, mirror frame stainless steel., door w.c. with busy lock, to embed, toilet ferrum line pillar with lacquered white wood cap, mirror float mm, ceramic san lorenzo gris pietra, mural urn ferrum short with presmatic valve, boot for placement of ceramics san lorenza gris pietra, boot for san lorenzo alegra ceramica, ceramic coating san lorenzo glad, shower, curtain polyester, sanitary cutting esc:, sanitary ware plant:

Raw text data extracted from CAD file:

\A1;5,92 \A1;0,80 \A1;1,40 \A1;2,00 \A1;0,40 PORTARROLLO PARA EMBUTIR INODORO FERRUM LINEA PILAR CON MOCHILA, TAPA DE MADERA LAQUEADA BLANCA GRUESO Y FINO A LA CAL ENDUIDO Y PINTADO CON LATEX MARCA LOXON MARCO ESPEJO ACERO INOX. ESPEJO FLOAT 6 mm MESADA DE GRANITO GRIS MARA, CON ZOCALO PERIMETRAL Y FRENTIN, CON TRANSFORO PARA GRIFERIA FV207/61CROMADA Y BACHA ENLOSADA BLANCA DISPENSER DE TOALLAS DE PAPEL DISPENSER DE JABON LIQUIDO REVESTIMIENTO CERAMICA SAN LORENZO ALEGRA 20x20 h= 2.00m CIELORRASO ARMADO DE DURLOCK PLACA VERDE CON BUÑA PERIMETRAL DUCHA ACERO INOXIDABLE CERAMICA SAN LORENZO GRIS PIETRA 0.297x0.297 (e=6mm) MESADA DE GRANITO GRIS MARA, CON ZOCALO PERIMETRAL Y FRENTIN, CON TRANSFORO PARA GRIFERIA FV207/61CROMADA Y BACHA ENLOSADA BLANCA DISPENSER DE JABON LIQUIDO DISPENSER DE TOALLAS DE PAPEL MARCO ESPEJO ACERO INOX. PUERTA W.C. CON CERRADURA LIBRE- OCUPADO \fArial|b0|i0|c0|p34;PORTARROLLO PARA EMBUTIR INODORO FERRUM LINEA PILAR CON MOCHILA, TAPA DE MADERA LAQUEADA BLANCA ESPEJO FLOAT 6 mm CERAMICA SAN LORENZO GRIS PIETRA 0.297x0.297 (e=6mm) MINGITORIO FERRUM MURAL CORTO CON VALVULA PRESMATIC ARRANQUE PARA COLOCACIÒN DE CERAMICA SAN LORENZA GRIS PIETRA 0.297X0.297 ( e=6mm ) ARRANQUE PARA COLOCACIÒN DE CERAMICA SAN LORENZA GRIS PIETRA 0.297X0.297 ( e=6mm ) ARRANQUE PARA COLOCACIÒN DE CERAMICA SAN LORENZO ALEGRA 20X20 h=2.00m REVESTIMIENTO CERAMICA SAN LORENZO ALEGRA 20x20 h= 2.00m DUCHA 0.98X1.09m CORTINA DE BAÑETA POLIESTER A A CORTE A-A SANITARIO ESC: 1.20 PLANTA SANITARIOS ESC: 1.20 5 5 5 5 5

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Steel, Wood
Measurement Units
Footprint Area
Building Features
Tags	abwasserkanal, autocad, banhos, bathrooms, casa de banho, commercial, DETAIL, DWG, fosse septique, health, mictório, plumbing, PUBLIC, restroom, sanitär, Sanitary, sewer, toilet, toilets, toilette, toilettes, urinal, urinoir, wasser klosett, WC
