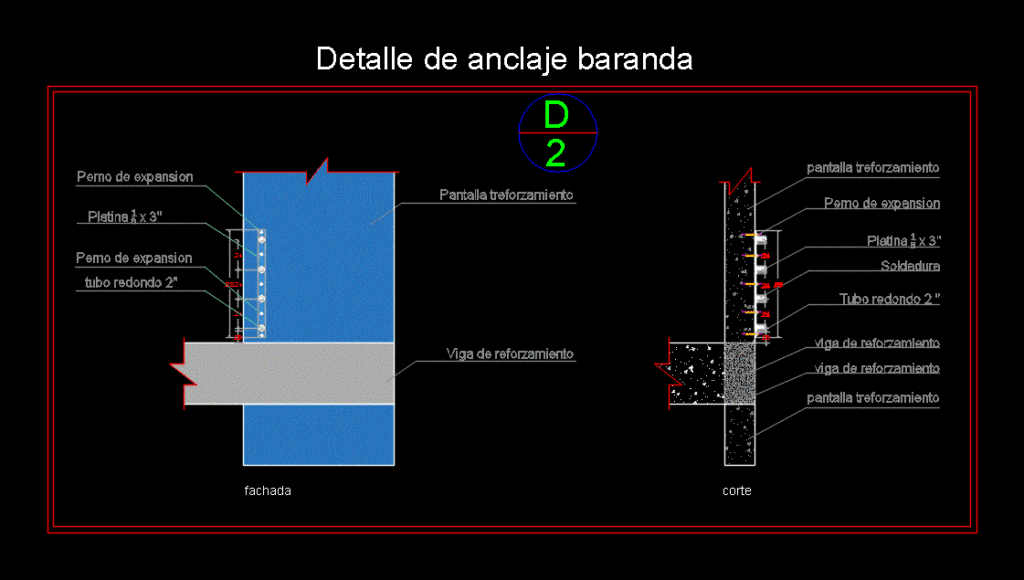

Detail Rail Anchor DWG Detail for AutoCAD

Detail Rail Anchor DWG Detail for AutoCAD

Anchor railing 2

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Scale, Project, Date, Sheet, Project name and address, Firm name and address, do not., Date, General notes, Treadmill screen, Reinforcement beam, welding, Reinforcement beam, round tube, Expansion bolt, Treadmill screen, round tube, Expansion bolt, Reinforcement beam, Treadmill screen, Anchorage detail railings, facade, cut, Expansion bolt

Raw text data extracted from CAD file:

Scale Project Date Sheet Revision/Issue Project Name and Address Firm Name and Address No. Date General Notes \A1;.24 \A1;.24 \A1;.24 \A1;.24 \A1;.24 \A1;.88 \A1;.24 \A1;.88 \A1;.09 \A1;.09 pantalla treforzamiento viga de reforzamiento Soldadura viga de reforzamiento Tubo redondo 2 " Perno de expansion Pantalla treforzamiento 5 5 5 5 5 5 \A1;Platina \S1/8; x 3" \A1;Platina \S1/8; x 3" tubo redondo 2" Perno de expansion 5 2 D Viga de reforzamiento pantalla treforzamiento 5 Detalle de anclaje baranda 5 5 fachada corte Perno de expansion

Language	Spanish
Drawing Type	Detail
Category	Stairways
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	anchor, autocad, degrau, DETAIL, DWG, échelle, escada, escalier, étape, ladder, leiter, rail, railing, railings, staircase, stairway, step, stufen, treppe, treppen
