Detail Slab With Wooden Beams DWG Detail for AutoCAD

Detail Slab With Wooden Beams DWG Detail for AutoCAD

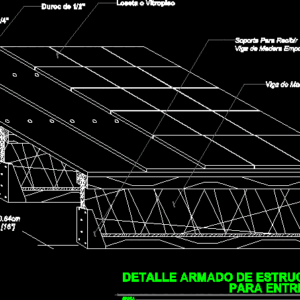

Detail conformation mezzanine slab in base of system Wooden Beams type

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Armored structure detail, scale, unscaled, for mezzanine, vitropiso, wooden type, to receive recessed wooden beam

Raw text data extracted from CAD file:

DETALLE ARMADO DE ESTRUCTURA ESCALA SIN ESCALA PARA ENTREPISO \A1;Triplay de 3/4" \A1;Duroc de 1/2" \A1;Loseta o Vitropiso \A1;Viga de Madera Tipo "I" \A1;Soporte Para Recibir Viga de Madera Empotrable \A1;30.48cm \A1;[ 1' ] \A1;1.91cm [3/4"] \A1;1.27cm [\S1#2;"] \A1;1.27cm [\S1#2;"] \A1;40.64cm [16"]

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Wood
Measurement Units
Footprint Area
Building Features
Tags	autocad, base, beams, DETAIL, détails de construction en bois, DWG, holz tür, holzbau details, mezzanine, slab, system, type, Wood, wood construction details, wooden, wooden door, wooden house
