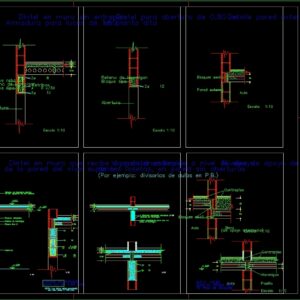

Details bearing wall concrete block

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

n.p.t., Concrete filling inside, of the holes in the tiles., reduced blocks, block type, concrete filling, opening, Armored detail, for light of mts., Note: the data in parentheses, they are for lights mts., lintel in wall that receives cargo from the mezzanine, from the top level wall, support beam level of support, of the on the wall without openings, example: classroom dividers in, armed lowered blocks, concrete fillings, metal deployed so that no, pass the concrete, reduced block, block type, concrete filling, opening, stirrups, scale, lintel in wall without mezzanine, armor for lights, lintel for opening m., upstairs, scale, opening, block type, concrete filling, blocks, external wall, scale:, exterior wall detail, classroom, levels of support of the tiles, classroom, underfloor, concrete, aisle, scale:, n.p.t., m. headroom, rows of blocks, bath, classroom, underfloor, support for, blocks cm., scale:

Raw text data extracted from CAD file:

+ 0.50 N.P.T. + 3.50 Relleno de Hormigon dentro de los agujeros de las losetas. Bloques rebajados Bloque tipo U Relleno de Hormigon Abertura 2 10 2 10 6 c/20 ( 6 c/30) 2 16 (2 12) Detalle de Armado para luz de 1.60 mts. NOTA: Los datos entre parentesis son para luces < 1.00 mts. Dintel en muro que recibe carga del entrepiso y de la pared del nivel superior 5 5 Viga de encadenado a nivel de apoyo de las losetas, en pared sin aberturas (Por ejemplo: divisorias de aulas en P.B.) 2 Bloques rebajados armados y rellenos de Hormigon Metal desplegado para que no pase el hormigon 1:20 1:10 1:10 1:20 5 5 5 5 5 5 5 5 5 0.16 0.06 0.04 2 12 2 12 + 0.00 Bloque rebajado Bloque tipo U Relleno de Hormigon Abertura 2 8 Estribos 6 c/30 Escala 1:10 Dintel en muro sin entrepiso Armadura para luces de 1.60 Dintel para abertura de 0.80 m. en planta alta 2 10 2 12 Escala 1:10 Abertura Bloque tipo U Relleno de Hormigon 0.16 0.06 0.04 0.08 0.12 0.32 0.59 1.79 0.16 0.06 0.04 0.16 0.06 0.04 0.16 0.06 0.04 0.16 0.06 0.04 Bloques e=10cm Pared externa Escala: 1:10 Detalle pared exterior Aula 16 16 Niveles de apoyo de las losetas Aula Contrapiso + 3.50 16 12 Hormigon Pasillo Escala: 1:10 N.P.T. +0.50 3.00 m. altura libre 15 filas de bloques Bano Aula Contrapiso 16 20 22 (sin apoyo intermedio) Bloques e=10 cm. Escala: 1:10 12 16 22 20 16 \A1;1.7900 \A1;0.5900 \A1;0.3200 \A1;0.1200 \A1;0.0800 \A1;0.1600 \A1;0.0600 \A1;0.0405 \A1;0.1600 \A1;0.0600 \A1;0.0400 \A1;0.16 \A1;0.06 \A1;0.04 \A1;0.16 \A1;0.06 \A1;0.04 \A1;16 \A1;16 \A1;12 \A1;16 \A1;20 \A1;22
