Details Plafon DWG Detail for AutoCAD

Details Plafon DWG Detail for AutoCAD

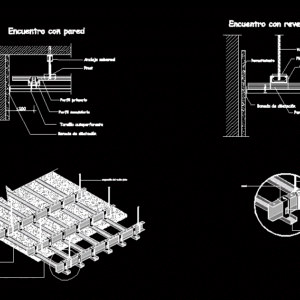

Details encounter with wall; Clad meeting and isometric.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

self drilling screw, pivot, universal anchorage, exp., secondary profile, primary profile, coating, threaded rod, pivot, easel, secondary profile, primary profile, exp., meeting with the wall, lined meeting, suspension element, profile, glass wool, rod mm, false ceiling suspension, channel, rod mm, profile, clamp

Raw text data extracted from CAD file:

Tornillo autoperforante Pivot Anclaje universal 100 Banada de dilatación Perfil secundario Perfil primario Revestimiento Varilla roscada Pivot Caballete Perfil secundario Perfil primario Banada de dilatación Encuentro con pared Encuentro con revestimiento elemento de suspención perfil t-47 lana de vidrio varilla Ø 6 mm suspención del techo falso canal varilla Ø 6 mm perfil t-47 abrazadera

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Glass
