Details Public Lighting DWG Detail for AutoCAD

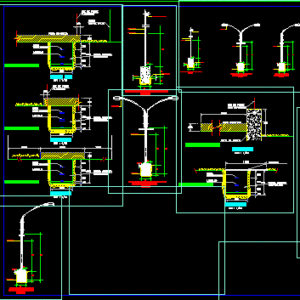

Details posts of public lighting and ducts underground of driving network
Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):
Technical specifications., Cable location:, Below the pedestrian thoroughfares streets. Of the trenches will have a bed of sand m., Type of circuits:, All the circuits are according to indication the queues to connect luminaires will be monofasicas, Connection of luminaires:, The luminaires will be connected alternately to achieve balance of the circuits., Physical protection of cable:, Above a row of bricks a pointing tape., Post alignment:, The posts will be oriented so that the fuses are located on the right side if you look at the passage street., Cross length:, The concrete ducts in the Crusades will reach a similar distance from below the paths., Installation of pipelines:, A depth of below the ducts will have a concrete flooring of thickness., Stoppers in unused ducts:, The unused pipeline tracks will be clogged with tarpaulin, Protection cable pole post:, A protection line will be placed for the section between the cable and the inner track on the pole., Protection of joints:, The splices will be protected by a brick niche., Location of poles in malecon:, Shall be placed above the concrete wall., Location of posts in general:, Will be placed to the edge of the tracks. Making sure that the post is not saved unless a protection zone is made., Power cables:, Will be red color temperature yellow ground wires, Suppliers of material equipment:, All suppliers must be approved South Light., Public lighting units, sidewalk., Upload cable, Circuit breaker., Lighting units., sidewalk., Upload cable, Post cac, Circuit breaker., Luxiod ex luminaire, Astro vs, With double pastoral., Unipolar coupling, cable, Concrete duct of roads, cable, Luxidex ex hm reflector with floor support, With similar unifix box, Cac pole with reflector, Luxiod ex vs. similar., Post cac with double pastoral, With clamp luminaires astro, Similary., Pole cac with spherical lamppost, Wall brackets with spherical vs., Similary., Post cac with luminaire plg hm, Similary., description, symbol, legend, Spherical vs., Decorative lighting plg, Luxiod ex aluminum reflector, Vs josfel similar, Luminary astro, description, symbol, legend, luminary, Josfel similar with bracket, Josfel similar, Vs josfel similar, Bollard vs bluff light, Josfel similar, Esc, Street lighting, sidewalk., Upload cable, Circuit breaker., With simple pastoral, Esc, Street lighting, cut, Esc, brick, tape, Signpost, Concrete track, Pole shaft, lighting, Street front, wall, Compacted, Sieved earth, Compacted, lighting, Pole shaft, Signpost, tape, brick, Esc, cut, Street lighting, Street lighting, cut, Esc, brick, tape, Signpost, Compacted, Sieved earth, With reflector, Pole shaft, Concrete track, Esc, cut, Street lighting, stone wall, Sieved earth, Compacted, Signpost, brick, Esc, cut, tape, Street lighting, passage, Floor support, Support tip, Josfel similar in punta de poste, Luxiod ex aluminum reflector, Vs josfel similar, Bracket with bpl josfel similar light, Circular fluorescent luminaire tp josfel similar, pass box, Yellow, White, Blue, Cyan, green, net, Revisions:, Scale: indicated, sheet:, Specialty: electrical installations, flat:, Public lighting networks, Details, Location:, draft:, owner, Department, district, province
Raw text data extracted from CAD file:
| Language | Spanish |
| Drawing Type | Detail |
| Category | Water Sewage & Electricity Infrastructure |
| Additional Screenshots |
 |
| File Type | dwg |
| Materials | Aluminum, Concrete |
| Measurement Units | |
| Footprint Area | |
| Building Features | Car Parking Lot |
| Tags | autocad, DETAIL, details, driving, ducts, DWG, electrical installation, haute tension, hochspannung, kläranlage, lighting, network, posts, PUBLIC, Street lighting, treatment plant, underground, wiring |
