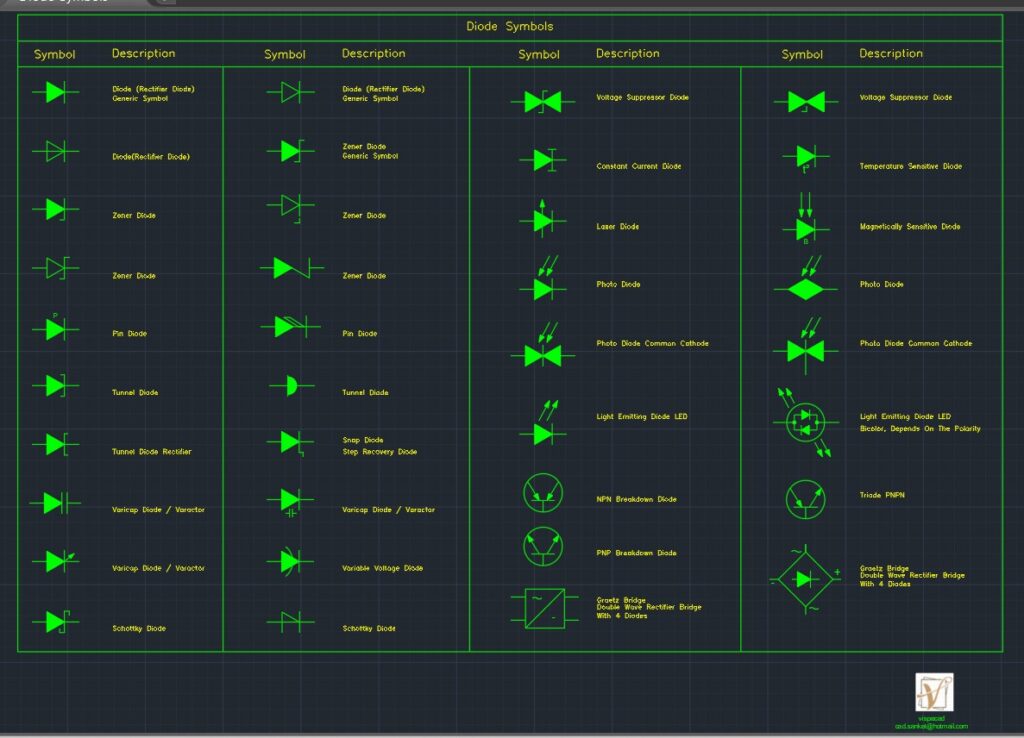

Diode Symbols
ADVERTISEMENT
ADVERTISEMENT
Autocad 2004 version
Triode PNPN
Double Wave Rectifier Bridge
Constant Current Diode
Light Emitting Diode
LED Laser Diode
Photo Diode
Temperature Sensitive Diode
Photo Diode
Common Cathode
Magnetically Sensitive Diode
Gratz Bridge
Bicolor,
Depends On The Polarity
Tunnel Diode
NPN Breakdown Diode
Schottky Diode
Snap Diode
Pin Diode
Diode(Rectifier Diode) With 4 Diodes
Tunnel Diode Rectifier
Diode (Rectifier Diode)
PNP Breakdown Diode
Varicap Diode / Varactor
Step Recovery Diode
Generic Symbol
Variable Voltage Diode
Zener Diode
| Language | English |
| Drawing Type | Block |
| Category | Electronic Components & Devices |
| Additional Screenshots | |
| File Type | dwg |
| Materials | N/A |
| Measurement Units | N/A |
| Footprint Area | N/A |
| Building Features | |
| Tags | Diode Symbols block |
