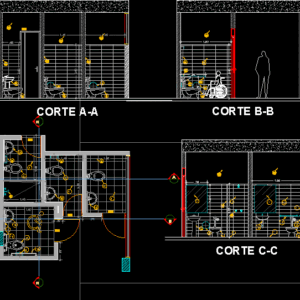

Design 3 bathrooms . One is for nadicapped people with this type of furniture for bathrooms – Plant and cut of the project

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

room, court a-a, court b-b, court c-c, wall white paint on pañete and stucco, divic.ducha: superboard sheet with echape, divic. bathrooms: galvanized sheet with baking paint, sanitary crown parafurometro with push-type anti-vandal faucets, aluminum doors panels bathrooms, hygienic paper protector, urinal with push-type fluxometer, bathroom access door, shower taps, washbasin taps, friend’s foot for slab, pedestal sinks in sanitary ware, washbasin of colgal, foresee reinforcements for the installation, acliric door and frame in aluminum, kitchen taps, wall white paint on pañete, door in wood with red polyurethane paint finish, block wall, washbasin san lorenzo submontar

Raw text data extracted from CAD file:

ROOM 000 \A1;.65 \A1;2.30 \A1;.71 \A1;.32 \A1;1.40 \A1;1.46 \A1;1.87 \A1;2.48 \A1;1.40 \A1;2.00 \A1;2.00 \A1;.65 \A1;1.40 \A1;1.46 \A1;2.00 \A1;.79 \A1;.92 \A1;1.87 \A1;.78 \A1;1.04 \A1;2.00 \A1;1.86 6 6 6 M2 8 8 16 M2 M1 M1 M1 CORTE A-A CORTE B-B CORTE C-C 12 13 11 11 17 8 18 8 18 17 19 19 8 6 12 M1 11 12 M1 M1 6 1 16 6 1 5 c b b a a c 1 1 1 16 16 6 6 6 M2 20 17 6 19 11 8 18 16 19 8 8 8 13 5 5 5 5 5 5 5 5 5 5 5 5 5 PM9 PM4 PM5 PM6 PM9 5 5 5 5 5 5 5 5 \W8.47527; ESC: 1:50 M1 muro pintura blanca sobre pañete y estuco 1 PISOS . valdosa blanca de 30x30 2 divic.ducha : lamina superboard con echape 3 divic. baños: lamina galvanizada con pintura hornea. 4 meson en concreto prefabricado pulido con gravilla N°2 secante transparente de ALFA 6 sanitarios corona parafurometro con griferia antivandalica tipo push 7 puertas aluminio paneles baños 8 protector papel higienico 9 orinal con fluxometro tipo push antivandalica 10 puerta acceso baño 11 espejo 2.20x1.00 11 espejo cristal de 2.20x1.00 flotado 12 enchape corona zen color blnaco baño altura 2.00m bal. 13x43 cm 13 griferia duchas 14 griferia lavamanos 15 pie de amigo para losa 16 lavamanos tipo pedestal en porcelana sanitaria 17 barra de segurida para discapacitados en acero inoxidable color aaa 24" 18 barra de segurida para discapacitados en acero inoxidable color aaa 36" 19 lavamanos de colgal , preveer refuerzos para la instalacion puerta en aclirico y marco en aluminio 21 meson en concreto acabado en granito pulido # 1 22 valdosa 30 x 30cm 23 griferia cocina M2 muro pintura blanca sobre pañete 20 24 puerta en madera con acabado en pintura poliuretano color rojo 25 muro en bloque 4 lavamanos san lorenzo submontar

Language	Spanish
Drawing Type	Full Project
Category	People
Additional Screenshots
File Type	dwg
Materials	Aluminum, Wood, Other
Measurement Units	Imperial
Footprint Area
Building Features
Tags	autocad, bathroom, bathrooms, Behinderten, Cut, Design, disabilities, disabled, DWG, full, furniture, handicapés, handicapped, people, plant, Project, type
