Discharge Opening DWG Block for AutoCAD

Discharge Opening DWG Block for AutoCAD

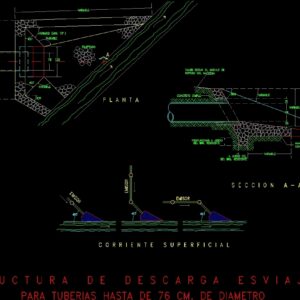

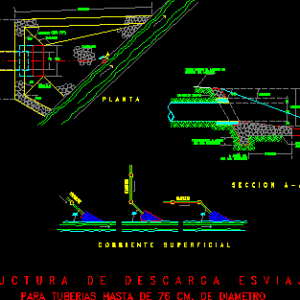

Structure of Discharge opening

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

variable, variable, variable, Depth judgment, variable, Of ing. resident, Judgment of the, Of ing. resident, Masonry, With cement mortar, Simple concrete, Slope according to the angle of, Rest of the material, variable, For pipes up to cm. diameter, Flouted, transmitter

Raw text data extracted from CAD file:

120 76 45%%127 VARIABLE VARIABLE VARIABLE 30%%127 45%%127 VARIABLE 270 20 76 20 VARIABLE PROFUNDIDAD A JUICIO VARIABLE DEL ING. RESIDENTE A JUICIO DEL DEL ING. RESIDENTE MAMPOSTERIA DE 3a. CON MORTERO CEMENTO 1:5 CONCRETO SIMPLE TALUD SEGUN EL ANGULO DE REPOSO DEL MATERIAL 60%%127 VARIABLE E S T R U C T U R A D E D E S C A R G A E S V I A J A D A PARA TUBERIAS HASTA DE 76 CM. DE DIAMETRO A A P L A N T A S E C C I O N A - A ZAMPEADO (MIN. 75 ) C O R R I E N T E S U P E R F I C I A L 45%%127 45%%127 45%%127 EMISOR EMISOR EMISOR

Language	Spanish
Drawing Type	Block
Category	Water Sewage & Electricity Infrastructure
Additional Screenshots
File Type	dwg
Materials	Concrete, Masonry
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, discharge, DWG, kläranlage, opening, structure, treatment plant
