Disco Karaoke DWG Full Project for AutoCAD

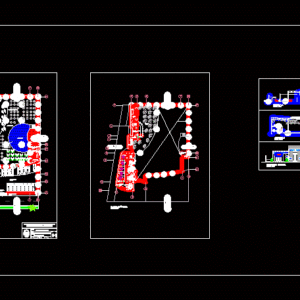

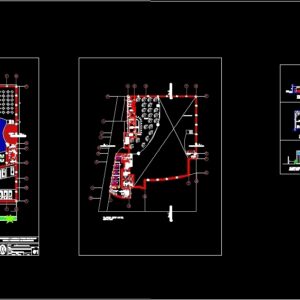

Plants; cuts and principal elevation of a project of a disco – karaoke. containing areas such as administrative, receptive, social, general services. meets minimum levels and axes.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

luis gomes, biblio cad, parking, table area, dance floor, bar, vip area, stage, s.h. h., ladder, patio, emergency, maneuvers, zonavip, dj booth, b-b court, court a-a, frontal elevation, karaoke, public, sidewalk, s.h, av. Miguel Grau, booth, surveillance, administrative, disabled, ceiling project, exit, projection of, beam, entry, control of, public, vehicular, square, public karaoke, public, nightclub, s. h. h., s.h .m., access to, warehouse, prepared, unloading, a. supplies, room, pass, a. beers, a. liqueurs, a. b. frosts, a. wines, a. soft drinks, maintenance, dressing room m., dressing room h., access to the dj, service, interior hall, ticket office, wardrobe, a. adm., and control, area of, platform, without frosting, cleaning, and waters, dressing h., dressing m., s. h. m., cameras, screen, vip zone, national university pedro ruiz gallo, professional architecture school, zeña guevara richard, subject :, student :, code :, date :, scale :, architectural design iii, course :, lamina, social club of recreation-beach, empty projection, secretary, reception, s. h. r., marketing, management, s. h. g., room, contracting, accounting, computer science, logistics, directory

Raw text data extracted from CAD file:

P Luis Gomes 03 08 15-MA-08 BIBLIO CAD O R N D O L L A G Z I U R A D I S R E V I N U E U Q E Y A B M L A D E P L A N O I C A \A1;4.10 \A1;19.85 \A1;10.30 \A1;10.00 \A1;2.10 \A1;17.60 \A1;20.18 \A1;7.59 \A1;3.42 \A1;4.03 \A1;2.18 \A1;3.58 \A1;3.31 \A1;0.15 \A1;1.79 \A1;0.15 \A1;35.60 \A1;2.16 \A1;1.06 \A1;2.63 \A1;2.84 \A1;3.09 \A1;3.83 \A1;4.39 \A1;4.73 \A1;0.15 \A1;5.89 \A1;0.15 \A1;3.30 \A1;4.86 \A1;7.89 \A1;2.73 \A1;2.66 \A1;4.98 \A1;4.20 \A1;6.80 \A1;4.10 \A1;5.50 \A1;4.25 \A1;4.80 \A1;1.35 \A1;8.65 \A1;3.50 \A1;4.20 \A1;3.15 \A1;7.80 NPT+0.20 ESTACIONAMIENTO NPT+0.15 ZONA DE MESAS NPT+0.00 PISTA DE BAILE NPT+0.15 ZONA DE MESAS BARRA NPT+4.50 ZONA VIP NPT+0.00 PISTA DE BAILE NPT+1.35 ESCENARIO NPT+0.15 ZONA DE MESAS NPT+0.00 S.H. H. NPT+0.30 ESCALERA DE NPT+0.20 PATIO DE EMERGENCIA MANIOBRAS NPT+0.20 ZONAVIP NPT+4.50 CABINA DEL DJ CORTE B-B CORTE A-A ESCALA 1/100 ESCALA 1/100 ELEVACION FRONTAL ESCALA 1/100 KARAOKE BARRA 5 5 5 5 5 5 NPT+0.00 DEL PUBLICO VEREDA 5 5 5 5 5 5 5 S.H S.H PLANTA 1ER NIVEL ESCALA 1/100 AV. MIGUEL GRAU NPT-0.15 CASETA DE VIGILANCIA ESTACIONAMIENTO ADMINISTRATIVO ESTACIONAMIENTO DISCAPACITADO 1 2 3 4 5 6 7 PROYECION DE TECHO SALIDA DE EMERGENCIA SALIDA DE EMERGENCIA KARAOKE NPT+0.30 PROYECCION DE VIGA INGRESO CONTROL DE SALIDA DE EMERGENCIA A A B B 1 2 3 4 5 6 7 NPT+0.20 ESTACIONAMIENTO NPT+0.00 VEREDA DEL PUBLICO NPT+0.20 VEHICULAR NPT+0.30 PLAZA NPT+0.30 PUBLICO KARAOKE NPT+0.30 PUBLICO NPT+0.45 DISCOTECA NPT+0.40 INGRESO NPT+0.45 KARAOKE INGRESO NPT+0.20 S. H. H. NPT+0.20 S.H .M. NPT+0.20 ACCESO A NPT+0.30 BARRA NPT+0.45 ALMACEN NPT+0.25 PREPARADO NPT+0.20 PATIO DE NPT+0.30 DE DESCARGA NPT+0.40 A. INSUMOS NPT+0.40 CUARTO DE NPT+0.30 PASADISO NPT+0.40 A. CERVEZAS NPT+0.40 A. LICORES NPT+0.40 A. B. HELADAS NPT+0.40 A. VINOS NPT+0.30 PREPARADO NPT+0.40 A. GASEOSAS NPT+0.45 MANTENIMIENTO NPT+0.15 BARRA NPT+0.15 BARRA NPT+0.15 ZONA DE MESAS NPT+0.00 PISTA DE BAILE NPT+1.35 ESCENARIO NPT+0.30 CAMERINO M. NPT+0.30 CAMERINO H. NPT+0.30 ACCESO AL DJ NPT+0.20 SERVICIO NPT+0.30 HALL INTERIOR NPT+0.30 BOLETERIA NPT+0.30 GUARDAROPA NPT+0.40 A. ADM. INGRESO INGRESO INGRESO INGRESO INGRESO ADMINISTRATIVO DISCOTECA Y CONTROL AREA DE MANIOBRAS PLATAFORMA AREA DE SIN HELAR LIMPIEZA CUARTO DE Y AGUAS NPT+0.10 VESTIDOR H. NPT+0.10 VESTIDOR M. NPT+0.30 S. H. H. NPT+0.00 S. H. M. 1 3 4 5 6 7 2 1 2 3 4 5 6 7 1 2 3 4 5 6 7 1 1 CUARTO DE CAMARAS PANTALLA INGRESO A ZONA VIP NPT+0.15 ZONA DE MESAS 1 2 3 4 5 6 1 2 3 4 5 6 7 A B C D F G P A B C D E G H I J K L M N O P 1 3 5 5 4 8 6 1 2 3 6 7 8 7 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 UNIVERSIDAD NACIONAL PEDRO RUIZ GALLO ESCUELA PROFESIONAL DE ARQUITECTURA 23/07/13 ZEÑA GUEVARA RICHARD 110393 H TEMA: ALUMNO: CODIGO: FECHA: 1/100 ESCALA: DISEÑO ARQUITECTONICO III CURSO: LAMINA 01 No CLUB SOCIAL DE ESPARCIMIENTO-PLAYA PLANTA 2DO NIVEL ESCALA 1/100 1 2 3 4 5 6 7 12 13 14 15 16 17 18 19 20 21 22 23 24 8 9 10 11 PROYECION DE VACIO B B 1 2 3 4 5 6 7 12 16 17 8 9 10 11 18 19 20 21 22 23 24 SALIDA DE EMERGENCIA 13 14 15 NPT+4.25 NPT+4.25 SECRETARIA NPT+4.25 RECEPCION NPT+4.20 S. H. R. NPT+4.25 MARKETING NPT+4.25 GERENCIA NPT+4.20 S. H. G. NPT+4.25 SALA DE NPT+4.25 CONTRATACION NPT+4.25 CONTABILIDAD NPT+4.25 INFORMATICA NPT+4.25 LOGISTICA NPT+4.20 S. H. M. NPT+4.20 S. H. H. NPT+4.075 NPT+4.50 ZONA VIP NPT+4.40 BARRA NPT+0.45 S. H. H. NPT+0.45 S. H. M. NPT+4.50 CABINA DEL DJ NPT+4.25 AREA DE 1 2 3 4 5 6 7 8 9 10 11 22 21 20 19 18 17 16 15 14 13 12 DIRECTORIO 1 2 3 4 5 6 7 8 9 10 11 21 20 19 18 17 16 14 13 12 15 PREPARADO 1 2 3 4 5 6 7 9 8 10 11 12 13 14 15 16 17 18 19 21 A A 20 B C E G H I J L P D F G P 5 4 8 6 7 1 3 6 7 8 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5

Language	Spanish
Drawing Type	Full Project
Category	Parks & Landscaping
