Education Center DWG Block for AutoCAD

Education Center DWG Block for AutoCAD

A TRAINING SCHOOL FOR EXAMINATIONS competetive.

Drawing labels, details, and other text information extracted from the CAD file:

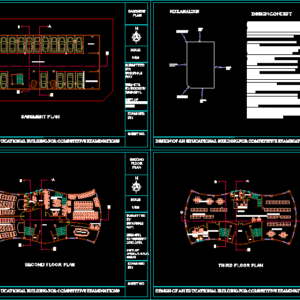

front elevation, side elevation, design of an educational building for competitive examinations, sheet no., examined by:, all dimen- sions are in mm, elevations, section through cc’, section through aa’, section through bb’, sections, library, lobby, lift, server room, reader’s area, study area, store room, asst. librarian’s room, issue desk, computers for searching books., . librarian’s room, tlt, basement parking, dg room, electrical room, basement plan, second floor plan, third floor plan, entrance lobby, waiting lounge, counselling room, reception desk, staff room, director’s room, asst. director’s rm, toilet, tlt-m, tlt- f, refreshment corner, pantry, kitchen, pump room, administration office, existing degree college campus, ground floor plan, first floor plan, tlt- m, faculty room, site entry, ramp down, stairs, librarian’s room, serial no., name of the room, toilet-male, toilet- female, ground floor, basement, first floor, second floor, third floor, area statement, bubble diagram, childrens’ park, river hoogly, ground floor zoning, student’s plaza, basement zoning, first floor zoning, second floor zoning, third floor zoning, site analysis, north wind, eastern sun, southwestern soothing wind, southern breeze, southeastern soothing wind, design concept

Raw text data extracted from CAD file:

WO DW SCALE 1:100 GL +_00 PL +600 SILL LVL+1500 LINTEL LVL +3000 1ST FL +4350 2ND FL +7650 RL +10950 GL +_00 PL +600 SILL LVL+1500 LINTEL LVL +3000 1ST FL +4350 2ND FL +7650 RL +10950 FRONT ELEVATION SIDE ELEVATION DESIGN OF AN EDUCATIONAL BUILDING FOR COMPETITIVE EXAMINATIONS SHEET NO. EXAMINED BY: ALL DIMEN- SIONS ARE IN MM ELEVATIONS GL +_00 PL +1200 SILL LVL+1950 LINTEL LVL +3300 1ST FL +4200 2ND FL +72000 3RD FLOOR +10200 ROOF LEVEL FLOOR +14400 GL +_00 PL +1200 SILL LVL+1950 LINTEL LVL +3300 1ST FL +4200 2ND FL +72000 3RD FLOOR +10200 ROOF LEVEL FLOOR +14400 GL +_00 PL +1200 SILL LVL+1950 LINTEL LVL +3300 1ST FL +4200 2ND FL +72000 3RD FLOOR +10200 ROOF LEVEL FLOOR +14400 LVL -2400 LVL -2400 LVL -2400 SECTION THROUGH CC' SECTION THROUGH AA' SECTION THROUGH BB' SCALE 1:100 SHEET NO. EXAMINED BY: SUBMITTED BY: SWARNALI ROY. SEM-4TH, ID:130209017 2010-2011. DEPT. OF ARCH., T. & R. P. BESUS SCALE 1:100 SHEET NO. EXAMINED BY: SECTIONS SECTIONS SUBMITTED BY: SWARNALI ROY. SEM-4TH, ID:130209017 2010-2011. DEPT. OF ARCH., T. & R. P. BESUS SUBMITTED BY: SWARNALI ROY. SEM-4TH, ID:130209017 2010-2011. DEPT. OF ARCH., T. & R. P. BESUS LIBRARY LOBBY LIFT LIFT LOBBY LIFT LIFT LECTURE HALL-3 LECTURE HALL-4 LIBRARY (E-BOOK READING) HALL FOR MOCK TEST (ONLINE) SERVER ROOM READER'S AREA READER'S AREA STUDY AREA STORE ROOM ASST. LIBRARIAN'S ROOM ISSUE DESK STUDY AREA COMPUTERS FOR SEARCHING BOOKS. . LIBRARIAN'S ROOM TLT TLT ISSUE DESK BASEMENT PARKING DG ROOM ELECTRICAL ROOM BASEMENT PLAN SECOND FLOOR PLAN THIRD FLOOR PLAN SCALE 1:100 SHEET NO. EXAMINED BY: SUBMITTED BY: SWARNALI ROY. SEM-4TH, ID:130209017 2010-2011. DEPT. OF ARCH., T. & R. P. BESUS \W4.01767; SITE \W4.01767; PLAN \W4.01767; WITH \W4.01767; GROUND \W4.01767; FLOOR \W4.01767; PLAN ENTRANCE LOBBY WAITING LOUNGE COUNSELLING ROOM RECEPTION DESK STAFF ROOM WAITING LOUNGE DIRECTOR'S ROOM ASST. DIRECTOR'S RM TOILET LIFT TLT TLT LIFT STORE ROOM TLT-M TLT- F REFRESHMENT CORNER PANTRY KITCHEN PUMP ROOM ADMINISTRATION OFFICE 15 M WIDE ROAD WITH 9 M WIDE CARRIAGEWAY EXISTING DEGREE COLLEGE CAMPUS 15 M WIDE ROAD WITH 9 M WIDE CARRIAGEWAY GROUND FLOOR PLAN N SCALE 1:100 SHEET NO. EXAMINED BY: SUBMITTED BY: SWARNALI ROY. SEM-4TH, ID:130209017 2010-2011. DEPT. OF ARCH., T. & R. P. BESUS BASEMENT PLAN N SCALE 1:100 SHEET NO. EXAMINED BY: SUBMITTED BY: SWARNALI ROY. SEM-4TH, ID:130209017 2010-2011. DEPT. OF ARCH., T. & R. P. BESUS \W2.69293; FIRST \W2.69293; FLOOR \W2.69293; PLAN N SCALE 1:100 SHEET NO. EXAMINED BY: SUBMITTED BY: SWARNALI ROY. SEM-4TH, ID:130209017 2010-2011. DEPT. OF ARCH., T. & R. P. BESUS \W0.31922; SECOND \W0.31922; FLOOR \W0.31922; PLAN N A A' B' B C' C A A A A' A' A' B B B B' B' B' C C C C' C' C' SCALE 1:100 SHEET NO. EXAMINED BY: SUBMITTED BY: SWARNALI ROY. SEM-4TH, ID:130209017 2010-2011. DEPT. OF ARCH., T. & R. P. BESUS \W2.55891; THIRD \W2.55891; FLOOR \W2.55891; PLAN N LOBBY STORE ROOM LECTURE HALL-2 LECTURE HALL-1 HALL FOR MOCK TEST (PEN AND PAPER) LIFT LIFT FIRST FLOOR PLAN A A' B B' C C' TLT- F TLT- M TLT- F TLT- M TLT- F TLT- M DESIGN OF AN EDUCATIONAL BUILDING FOR COMPETITIVE EXAMINATIONS DESIGN OF AN EDUCATIONAL BUILDING FOR COMPETITIVE EXAMINATIONS DESIGN OF AN EDUCATIONAL BUILDING FOR COMPETITIVE EXAMINATIONS DESIGN OF AN EDUCATIONAL BUILDING FOR COMPETITIVE EXAMINATIONS DESIGN OF AN EDUCATIONAL BUILDING FOR COMPETITIVE EXAMINATIONS DESIGN OF AN EDUCATIONAL BUILDING FOR COMPETITIVE EXAMINATIONS DESIGN OF AN EDUCATIONAL BUILDING FOR COMPETITIVE EXAMINATIONS FACULTY ROOM EXAMINED BY: SUBMITTED BY: SWARNALI ROY. SEM-4TH, ID:130209017 2010-2011. DEPT. OF ARCH., T. & R. P. BESUS \W2.10116; AREA \W2.10116; STATEMENT \W2.10116; & \W2.10116; BUBBLE \W2.10116; DIAGRAM DESIGN OF AN EDUCATIONAL BUILDING FOR COMPETITIVE EXAMINATIONS SCALE 1:300 EXAMINED BY: SUBMITTED BY: SWARNALI ROY. SEM-4TH, ID:130209017 2010-2011. DEPT. OF ARCH., T. & R. P. BESUS \W1.08210; ZONING DESIGN OF AN EDUCATIONAL BUILDING FOR COMPETITIVE EXAMINATIONS SHEET NO. SHEET NO. SITE ENTRY RAMP DOWN ENTRANCE LOBBY WAITING LOUNGE RECEPTION DESK COUNSELLING ROOM ADMINISTRATION OFFICE STORE ROOM TOILET \W4.72926; REFRESHMENT \W4.72926; CORNER PUMP ROOM LIFT STAIRS BASEMENT PARKING LIFT STAIRS LIFT STAIRS LIFT DG ROOM \W4.96127; ELECTRICAL \W4.96127; ROOM LOBBY STORE ROOM TOILET LIFT STAIRS LIFT STAIRS LECTURE HALL-2 LECTURE HALL-1 \W1.14623; HALL FOR MOCK TEST \W1.14623; (PEN AND PAPER) LOBBY TOILET LIFT STAIRS LIFT STAIRS LECTURE HALL-4 LECTURE HALL-3 LIBRARY (E-BOOK READING) FACULTY ROOM \W5.75815; HALL FOR MOCK TEST \W5.75815; (ONLINE) LOBBY TOILET LIFT STAIRS LIFT STAIRS \W7.19558; ASST. \W7.19558; LIBRARIAN'S \W6.63630; ROOM LIBRARIAN'S ROOM STORE ROOM LIBRARY SERIAL NO. NAME OF THE ROOM LENGTH(MM) BREADTH(MM) \W3.15947; AREA OF THE ROOM \W7.13644; (SQ. M.) 1. 5250 5000 26.25 2. DG ROOM \W4.77329; ELECTRICAL ROOM 5250 5000 26.25 SERIAL NO. NAME OF THE ROOM LENGTH(MM) BREADTH(MM) \W3.15947; AREA OF THE ROOM \W7.13644; (SQ. M.) 1. 2. 3. 4. 5. 6. 7. 9000 4500 40.5 7300 6400 46.72 10000 9000 90 TOILET-MALE TOILET- FEMALE LECTURE HALL-3 LECTURE HALL-4 10000 6750 67.5 10000 6750 67.5 LIBRARY (E-BOOK READING) FACULTY ROOM \W3.49452; HALL FOR MOCK TEST \W3.49452; (ONLINE) 6500 5500 35.75 4200 3200 13.44 GROUND FLOOR BASEMENT BASEMENT FIRST FLOOR SECOND FLOOR SECOND FLOOR THIRD FLOOR SERIAL NO. NAME OF THE ROOM LENGTH(MM) BREADTH(MM) \W3.15947; AREA OF THE ROOM \W7.13644; (SQ. M.) ENTRANCE LOBBY 1. 4800 3200 15.36 REFRESHMENT CORNER 10000 7150 71.5 2. 3. 4. 5. 6. 7. 8. 9. 9000 9000 81 3350 2700 9 6500 5000 32.5 8000 6600 52.8 6000 4800 28.8 6500 3200 20.8 5000 3100 15.5 COUNSELLING ROOM RECEPTION DESK STORE ROOM TOILET-MALE TOILET- FEMALE PUMP ROOM ADMINISTRATION OFFICE GROUND FLOOR SERIAL NO. NAME OF THE ROOM LENGTH(MM) BREADTH(MM) \W3.15947; AREA OF THE ROOM \W7.13644; (SQ. M.) 1. 10000 6750 67.5 2. 3. 8. 13500 135 6500 5500 35.75 LECTURE HALL-1 LECTURE HALL-2 10000 6750 67.5 \W1.71504; HALL FOR MOCK TEST \W1.71504; (PEN AND PAPER) 10000 4. 5. 5000 3200 16 4200 3200 13.44 TOILET-MALE TOILET- FEMALE STORE ROOM FIRST FLOOR SERIAL NO. NAME OF THE ROOM LENGTH(MM) BREADTH(MM) \W3.15947; AREA OF THE ROOM \W7.13644; (SQ. M.) 4 . 5. TOILET-MALE TOILET- FEMALE LIBRARY 3000 2500 7.5 4000 3000 12 4000 3000 12 3. 2. 1. LIBRARIAN'S ROOM ASST. LIBRARIAN'S ROOM 3000 2500 7.5 34700 13680 474.8 THIRD FLOOR AREA STATEMENT BUBBLE DIAGRAM ENTRANCE LOBBY WAITING LOUNGE COUNSELLING ROOM RECEPTION DESK LIFT LIFT STORE ROOM TOILET REFRESHMENT CORNER PANTRY KITCHEN PUMP ROOM ADMINISTRATION OFFICE 15 M WIDE ROAD WITH 9 M WIDE CARRIAGEWAY CHILDRENS' PARK EXISTING DEGREE COLLEGE CAMPUS RIVER HOOGLY 15 M WIDE ROAD WITH 9 M WIDE CARRIAGEWAY GROUND FLOOR ZONING STUDENT'S PLAZA \W2.98753; STAIRS \W2.98753; STAIRS \W2.98753; STAIRS BASEMENT PARKING DG ROOM ELECTRICAL ROOM BASEMENT ZONING LIFT LIFT \W2.98753; STAIRS LIBRARY LOBBY LECTURE HALL-1 \W4.48664; HALL FOR MOCK \W4.48664; TEST (PEN AND \W4.48664; PAPER) LOBBY TOILET LIBRARY (E-BOOK READING) FACULTY ROOM \W2.59784; HALL FOR MOCK \W2.59784; TEST (ONLINE) STORE ROOM ASST. LIBRARIAN'S ROOM LIBRARIAN'S ROOM FIRST FLOOR ZONING SECOND FLOOR ZONING THIRD FLOOR ZONING LIFT LIFT \W2.98753; STAIRS \W2.98753; STAIRS LECTURE HALL-2 STORE ROOM TOILET LOBBY LECTURE HALL-1 LIFT LIFT \W2.98753; STAIRS \W2.98753; STAIRS LECTURE HALL-2 TOILET LIFT LIFT \W2.98753; STAIRS \W2.98753; STAIRS \W2.98753; STAIRS EXAMINED BY: SUBMITTED BY: SWARNALI ROY. SEM-4TH, ID:130209017 2010-2011. DEPT. OF ARCH., T. & R. P. BESUS \W0.51260; VIEWS DESIGN OF AN EDUCATIONAL BUILDING FOR COMPETITIVE EXAMINATIONS SHEET NO. ALL DIMEN- SIONS ARE IN MM ALL DIMEN- SIONS ARE IN MM ALL DIMEN- SIONS ARE IN MM RAMP DOWN STUDENT'S PLAZA EXAMINED BY: SUBMITTED BY: SWARNALI ROY. SEM-4TH, ID:130209017 2010-2011. DEPT. OF ARCH., T. & R. P. BESUS \W2.23940; SITE \W2.23940; ANALYSIS DESIGN OF AN EDUCATIONAL BUILDING FOR COMPETITIVE EXAMINATIONS SHEET NO. SITE ANALYSIS NORTH WIND EASTERN SUN NORTH WIND SOUTHWESTERN SOOTHING WIND SOUTHERN BREEZE SOUTHEASTERN SOOTHING WIND DESIGN CONCEPT THE SITE IS LOCATED IN SERAMPUR NEAR THE RIVER HOOGHLY.THE BUILDING IS PLACED IN SUCH A WAY, THAT STUDENTS CAN BOTH ENJOY THE ESSENCE OF LEARNING & THE WONDERFUL VIEW OF RIVER HOOGHLY. TWO SIDE ROADWAY HAS GIVEN THE EXTRA TRANSPORT FACILITY. \W8.77655; THE DESIGN PRINCIPLES ADOPTED ARE AS FOLLOWS:- \LFORM & SHAPE:-& SHAPE:- THE PLAN OF THE BUILDING IS BASICALLY AN ASSIMILATION OF NUMBER OF ARCS AND FOR ELEVATION TREATMENT DIFFERENT TYPES OF SHAPE AND FORM IS USED AS THE DESIGN SUITED. \LRHYTHM:-THE DESIGN FOLLOWS A DEFINITE RHYTHM. THE ENTRY OF THE BUILDINGS PLACED FAR FROM THE ROAD JUNCTION TO AVOID THE ACCIDENT. A SEPARATE ENTRANCE FOR PEDESTRIANS SO THAT NO CHAOS IS CREATED AT THE ENTRANCE. FOR VEHICLES, THE ENTRANCE IS ALSO PLACED FAR FROM THE JUNCTION. THE FOOD COURT IS PLACED IN THE GROUND FLOOR FOR EASY ACCESS & A SMOOTH SERVICE ENTRY. THE FACULTY ROOM IS PLACED FACING THE RIVER HOOGHLY AS IT GIVES A GOOD VIEW . THE RECEPTION DESK IS PLACED VERY NEAR TO THE ENTRANCE LOBBY FOR CONVIENCE OF THE VISITORS. THE ADMINISTRATION BUILDING PLACED IN THE GROUND FLOOR FOR EASY CONTROLLING AND MAINTAINANCE OF THE INSTITUTE & ALSO IT IS CONVENIENT FOR THE PEOPLE.

Language	English
Drawing Type	Block
Category	Schools
Additional Screenshots
File Type	dwg
Materials	Other
Measurement Units	Metric
Footprint Area
Building Features	Garden / Park, Parking
