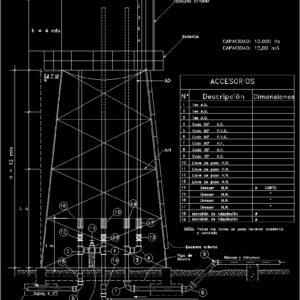

Elevated Pool – 12000lts DWG Detail for AutoCAD

Elevated Pool – 12000lts DWG Detail for AutoCAD

Detail connection – Elevation – Technical specifications

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Connections for raised pond, cleaning, ventilation, Mouth of visit, External staircase, railing, Cm., Per m. from, Ht mts, Mts, entry, departure, note:, The n ° adaptation pads will use when the tubing, Input output is from p.v.c., The diameter of the fittings shall be fixed according to the diameter of the pipes, Input, accessories, note:, All stopcocks will carry ccadenna, padlock, Beam, strut, Overflow, External staircase, Capacity: lts, capacity:, Concrete support, Foundation, description, dimensions, Tee.g., Tee.g., A., Elbow p.v.c., Elbow p.v.c., Elbow h.f., A., Key of step h.n., Key of step h.n., Key of step h.n., Key of step h.n., Dresser h.n., Dresser h.n., Dresser h.n., Adaptation spot, Adaptation spot, short, Dib. Cad: ing. Yamary alvarez

Raw text data extracted from CAD file:

CONEXIONES PARA ESTANQUE ELEVADO ENTRADA,SALIDA BY-PASS,REBOSE Y LIMPIEZA 1 2 3 4 VENTILACION BOCA DE VISITA ESCALERA EXTERNA BARANDA 5 a 10 cm. POR m. DE H. ht = 0.60 mts h = 4 mts H = 12 mts L a 1 m. AD AH DF Entrada d 4" Salida d 3" NOTA: LOS MANCHONES DE ADAPTACION Nº 18 Y 19,SE USARAN CUANDO LA TUBERIA DE ENTRADA Y SALIDA SEA DE P.V.C. EL DIAMETRO DE LOS ACCESORIOS SE FIJARAN SEGUN EL DIAMETRO DE LAS TUBERIAS DE ENTRADA Y SALIDA ACCESORIOS NOTA: Todas las llaves de paso llevaran ccadenna y candado Viga de Riostra Rebose y Limpieza Escalera externa CAPACIDAD: 12.000 lts CAPACIDAD: 12,00 m3 Soporte de concreto Fundación 16 12 2 1 3 4 5 6 7 18 19 11 10 13 15 14 17 9 8 Descripción Dimensiones Nº 1 Tee A.G. 2 Tee A.G. Tee A.G. 3 4 Codo 90° A.G. 5 Codo 90° P.V.C. 6 Codo 90° P.V.C. 7 Codo 90° H.F. Codo 45° H.F. 8 9 Codo 45° A.G. 10 Llave de paso H.N. 11 Llave de paso H.N. 12 Llave de paso H.N. 13 Llave de paso H.N. Dresser H.N. 14 15 Dresser H.N. Dresser H.N. 16 Dresser H.N. 17 18 Manchón de Adaptación 19 Manchón de Adaptación Ø CORTO " Ø Ø " " DIB. CAD: ING. YAMARY ALVAREZ

Language	Spanish
Drawing Type	Detail
Category	Water Sewage & Electricity Infrastructure
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features	Pool, Car Parking Lot
Tags	autocad, connection, DETAIL, distribution, DWG, elevated, elevation, fornecimento de água, kläranlage, l'approvisionnement en eau, lts, POOL, specifications, supply, technical, treatment plant, wasserversorgung, water
