Envigado Metallic Floor DWG Block for AutoCAD

Envigado Metallic Floor DWG Block for AutoCAD

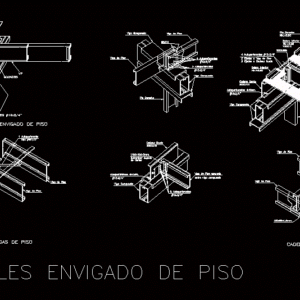

Extreme metal joist structure on mezzanine

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

supported floor beam, self drilling machines, to cut, to galvanize after, chain border, right foot, chain border, floor beam, tertiary, structural floor plate, composite beam, self drilling machines, floor beam, right foot, lower floor, chain stitch, self drilling machines, self-drilling, kind, license plate, self-drilling, blocker to the rotation of beams, floor, lower floor, floor beams stabilizer, chain stitch, floor beam, composite beam, composite beam, floor beam, self-drilling, on composite beam, for each side, kind, self drilling machines, self drilling machines, self drilling machines, fixed floor girder, fixed edge chain, self drilling machines, detail of floor, details of floor

Raw text data extracted from CAD file:

Viga de Piso apoyada 8 Autoperforantes 80 de Cortar Galvanizar depués L100x100x3mm. Cadena Borde Pie Derecho Pie Derecho Cadena Borde Viga de Piso Terciado e:18mm. Chapa Estructural de Piso Viga Compuesta Viga Compuesta 3 Autoperforantes 4 Autoperforantes #12x3/4" 90CA085 92C10 Viga de Piso Pie Derecho Niv.+2.60 Solera Inferior Niv.+2.60 L50x50x1,6mm. 150CA16 Cadeneta 4 Autoperforantes L50x50x1.6mm. 1 Autoperforante tipo #8x1/2" Placa 70P085 1 Autoperforante Bloqueador al Giro de vigas de piso Pl.50x0.85mm. Solera Inferior Niv.+2.60 ESTABILIZADOR VIGAS DE PISO CADENETA Viga de Piso Viga Compuesta 100C12 200CA16 Viga Compuesta 200CA16 Viga de Piso Viga de Piso Viga de Piso Viga de Piso #12x3/4" Autoperforante @40cm. #6 18x11/4" #12x3/4" sobre viga compuesta #12x3/4" por cada lado tipo #8x1/2" Autoperforantes @40cm. #12x3/4" Autoperforantes @40cm. #12x3/4" 4 Autoperforantes #12x3/4" 2 fijados a Viga de Piso 2 fijados a Cadena Borde VP 90CA085 CB L=75x75x1.6 L=75 S/E V1 5+5 AUTOPERFORANTES #10x3/4" DETALLE ENVIGADO DE PISO DETALLES ENVIGADO DE PISO

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems

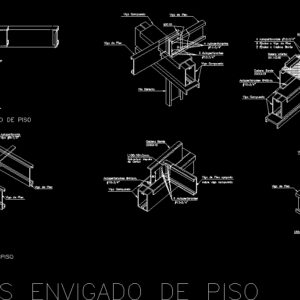

Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, DWG, extreme, floor, joist, metal, metallic, mezzanine, stahlrahmen, stahlträger, steel, steel beam, steel frame, structure, structure en acier
