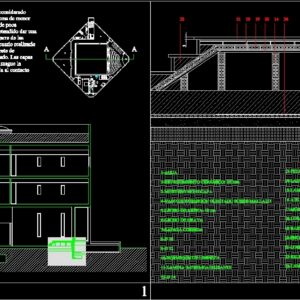

Facade With Pond DWG Block for AutoCAD

Facade With Pond DWG Block for AutoCAD

Connection pond with facade – Technical specifications

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

ceramic:, Monolayer, Of concrete shotgun on mesh, Of sand: cm, Of gravel, run, cleaning, Waterproofing, lost, That forms the step, Prefabricated concrete, Fuck with plaster, Monolayer, Asphaltic, Partition wall, Corner fixing mortar, steam, It is the project of a church that is located in a terrain of gentle slope where the quality of the ground has been considered good reason why only a superficial foundation is needed. The treated constructive detail is located in the lower slope of the building. It is the encounter between a retranqueo of the facade with the interior a small pond of shallow depth. In the interior has been arranged an altar platform that rests on the floor of the floor. It has been tried to give continuity of the plaster of the facade with the glass of the pond reason why a monolayer mortar has been used to take hold of the ceramic pieces that line the glass to emphasize the little thickness that has given to the glass in reason what is It is necessary to do it by means of gunite of without using mold that would need a minimum thickness. The facade rests on a concrete wall that has a small bracket to accommodate the glass to achieve continuity in the aforementioned facade plane. The layers arranged below the hearth are gravel drained filtered from the perimeter of the sand to avoid tearing the sheet a sheet of steam mission would be to avoid the return of the condensed water on contact with the

Raw text data extracted from CAD file:

29 6,5 19 57 69,81 106,43 3 7 24,5 10 8,5 3 6,5 10 15 1 2 3 4 5 6 7 8 9 10 11 12 2 22 21 19 19 20 14 17 14 16 15 14 13 6 5 11 16 18 16 1-AGUA 2-REVESTIMIENTO CERÁMICO: 2X2cm 3-MORTERO MONOCAPA 4-VASO DE HORMIGÓN GUNITADO SOBRE MALLAZO 5-LECHO DE ARENA: 10 cm 6-LECHO DE GRAVA 7-ZAPATA CORRIDA 8-D 16 9-D 12 10-HORMIGÓN DE LIMPIEZA 11-LAMINA IMPERMEABILIZANTE 12-D 14 20-ENCOFRADO PERDIDO 22-RELLENO QUE CONFORMA EL PELDAÑO 21-LOSETAS DE HORMIGÓN PREFABRICADO 19-RASILLAS COGIDAS CON YESO 17-MORTERO MONOCAPA 15-LAMINA ASFÁLTICA 18-LOSA 16-AISLANTE 14-LADRILLO TABICÓN 13-PERFIL DE ESQUINA FIJACIÓN DE MORTERO 5 5 5 5 5 5 2 2 A 4 1 3 A 24 23-LAMINA DE VAPOR 5 5 5 5 5 5 5 5 5 2 1 Se trata del proyecto de una iglesia que se emplaza en un terreno de suave pendiente donde la calidad del suelo se ha considerado buena por lo que únicamente hace falta una cimentación superficial. El detalle constructivo tratado se emplaza en la zona de menor pendiente del edificio. Se trata del encuentro entre un retranqueo de la fachada con el interior y un pequeño estanque de poca profundidad. En el interior se ha dispuesto una tarima destinado a altar que se apoya sobre la solera del piso. Se ha pretendido dar una continuidad del revoco de la fachada con el vaso del estanque por lo que se ha utilizado un mortero monocapa para agarre de las piezas cerámicas que forran el vaso . A destacar el escaso espesor que se ha dado al vaso en sí, por lo que se hace necesario realizarlo mediante gunitado de hormigón, sin utilizar molde que necesitaría un espesor mínimo. La fachada se apoya en un murete de hormigón que posee una pequeña ménsula para acoger el vaso y lograr la continuidad en el plano de fachada antes citado. Las capas dispuestas debajo de la solera son grava drenante (agua filtrada del perímetro de la fachada), arena (para evitar que se rasgue la lámina impermeabilizante), un aislante, y una lámina de vapor (cuya misión seria evitar el retorno del agua condensada al contacto con el aislante).

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Glass
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, block, connection, construction details section, cut construction details, DWG, facade, pond, specifications, technical
