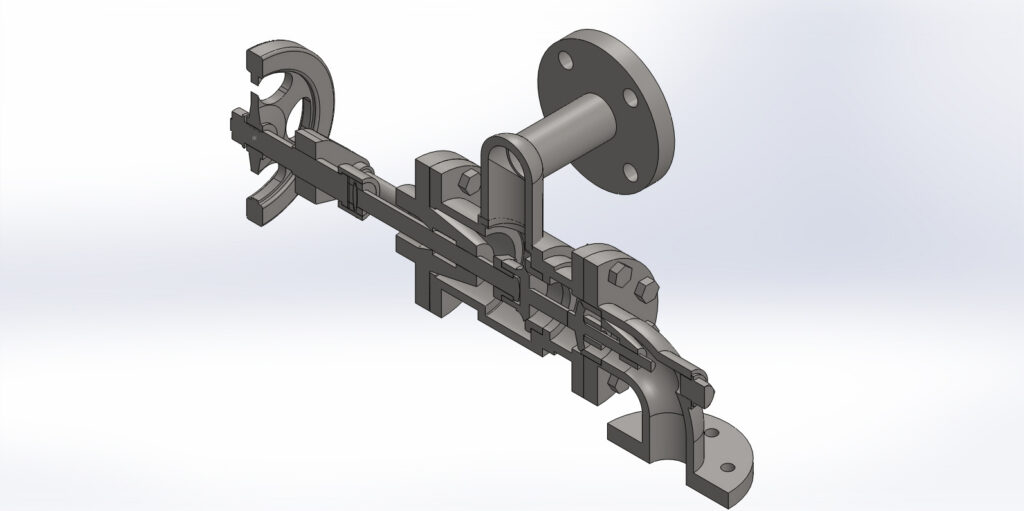

FEED CHECK VALVE
Feed Check Valves are one of the most important components of boiler which control the flow of water from feed pump to the boiler and further prevents the backflow of water from boiler to pump when the boiler pressure is more than the pump pressure or when feed pump stops working.
Language | English |
Drawing Type | Model |
Category | Industrial |
Additional Screenshots | |
File Type | dwg |
Materials | Steel |
Measurement Units | N/A |
Footprint Area | N/A |
Building Features | A/C |
Tags | 3D Model, ds, pipes, valve design |
