Fireplace Heating DWG Detail for AutoCAD

Fireplace Heating DWG Detail for AutoCAD

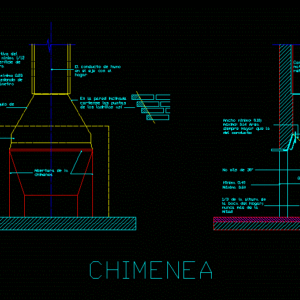

Heating detail; chimney.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

chimney opening, the smoke pipe on the shaft with the hearth, effective area of the minimum of the opening gap, minimum diameter round duct, wood cladding away from the opening, angle of, on the inclined wall cut off the tips of the bricks as well, minimum width: maximum: area always greater than that of the conduit, of the mouth height of never more than half, minimum, maximum, no more than, refractory material conduit, chimney

Raw text data extracted from CAD file:

\A1;0.266 \A1;0,54 Abertura de la chimenea El conducto de humo en el eje con el hogar Area efectiva del conducto, mínima 1/12 de la suoerficie de la abertura Conducto mínimo 0.20 x 0.20 o redondo de 0.25 de diámetro Revestimientos de madera alejados de la abertura Angulo de 30° En la pared inclinada cortense las puntas de los ladrillos así Ancho mínimo: 0.10; máximo: 0.14 Area siempre mayor que la del conducto 1/3 de la altura de la boca del hogar; nunca más de la mitad Mínima 0.40 Máxima 0.60 No más de 30° Conducto de material refractario 0.266 5 CHIMENEA

Language	Spanish
Drawing Type	Detail
Category	Climate Conditioning
Additional Screenshots
File Type	dwg
Materials	Wood
Measurement Units
Footprint Area
Building Features	Fireplace
Tags	aquecedor, aquecimento, autocad, boiler, chauffage, chauffe, chimney, DETAIL, DWG, fireplace, heater, heating, heizung, home, radiator
