Gate Valve DWG Plan for AutoCAD

Gate Valve DWG Plan for AutoCAD

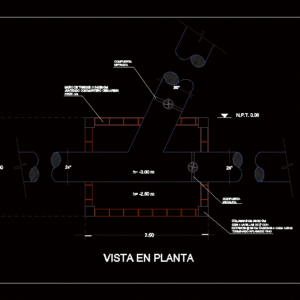

Gate Valve – Plan View

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Metal gate, Plant view, Metal gate, N.p.t., Wall of wall cm joined with mortar prop., Cm with rods with stirrups cm chains each finely flattened finish

Raw text data extracted from CAD file:

COMPUERTA METALICA VISTA EN PLANTA COMPUERTA METALICA N.P.T. 0.00 h= -3.00 m h= -2.50 m 24" 24" 30" 2.00 2.50 MURO DE TABIQUE 7X14X28 CM JUNTEADO CON MORTERO CEM-ARENA PROP. 1:4 \A1;COLUMNAS DE 20X20 CM CON 4 VARILLAS DE \S3/4;" CON ESTRIBOS @ 20 CM CADENAS A CADA 1.50 M TERMINADO APLANADO FINO

Language	Spanish
Drawing Type	Plan
Category	Bathroom, Plumbing & Pipe Fittings
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	a válvula, autocad, disc, DWG, gate, pipes, plan, rohr, soupape, tube, tubulação, tuyau, valve, valves, ventil, View
