Generator Hot DWG Block for AutoCAD

Generator Hot DWG Block for AutoCAD

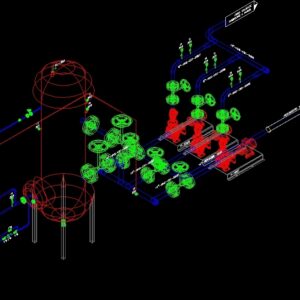

Generation system based on hot water heating heat exchanger fed steam .

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

water services, steam, comes from plant, hot water return, thermal isolation, plant supply, Hot water, condended, thermal isolation, thermal isolation

Raw text data extracted from CAD file:

AGUA DE SERVICIOS VAPOR VIENE DE PLANTA RETORNO AGUA CALIENTE 2"-PW-CS1-040 4"-S-CS2-5006 AISLAMIENTO TÉRMICO \W1.15879; PI \W0.56355; 201 \W0.81789; PI 202 \W0.55399; TT 201 2"d 4"d 1"d 1"d 1"d 1"d TS-1353 P-2003 P-2002 P-2001 \W0.81589; TI 203 \W0.62542; PI 203 \W0.55399; TT 202 10"-HWR-CS1-2030 10"-HWS-CS1-2002 8"-HWS-CS1-2005 \W0.62542; PI 204 \W0.81589; TI 204 10"-HWS-CS1-2003 8"-HWS-CS1-2006 \W0.62542; PI 205 \W0.81589; TI 205 10"-HWS-CS1-2004 8"-HWS-CS1-2007 \W0.62542; PI 206 \W0.81589; TI 206 10"-HWS-CS1-2008 SUMINISTRO A PLANTA AGUA CALIENTE CONDENDADO AISLAMIENTO TÉRMICO AISLAMIENTO TÉRMICO 2"-SC-CS2-5006 AISLAMIENTO TÉRMICO
