Ground Beam 3D DWG Model for AutoCAD

Ground Beam 3D DWG Model for AutoCAD

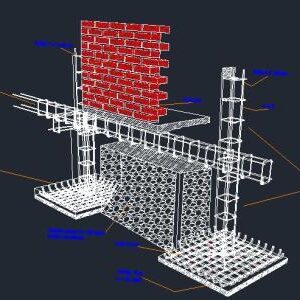

Zapata – – Beams Foundation – underlayment – 3D design as a foundation beam is built Mamposteria

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

template cm, shoes, stirrups, enraze cm, partition wall, template cm, shoes, stirrups, enraze cm, partition wall, template cm, given from, stirrups, meeting, brick cm, cilopeo foundation, shoe, foundation beam, specified measurement column, specified measurement

Raw text data extracted from CAD file:

Plantilla 5 cm f´c = 100 kg/m² Calza de 1" Estribos # 2 @20cm 4 vs #3 Enraze 60 cm Tabique 7 x 14 x28 cm Plantilla 5 cm f´c = 100 kg/m² Calza de 1" Estribos # 2 @20cm 4 vs #3 Enraze 60 cm Tabique 7 x 14 x28 cm Plantilla 10 cm f´c = 100 kg/m² Dado de 5cm Estribos Ø @20cm 4 vs Ø Junta 2cm Ladrillo 7 x 14 x28 cm Cimiento cilopeo f°c =145 kg/m2 Zapata f°c =210 kg/m2 Viga de cimentacion Columna medida especificada medida especificada medida especificada medida especificada

Language	Spanish
Drawing Type	Model
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, base, beam, beams, built, Design, DWG, FOUNDATION, foundations, fundament, ground, model, shoe, zapata
