Hawker Cubicle DWG Block for AutoCAD

Hawker Cubicle DWG Block for AutoCAD

Hawker Cubicle

Drawing labels, details, and other text information extracted from the CAD file:

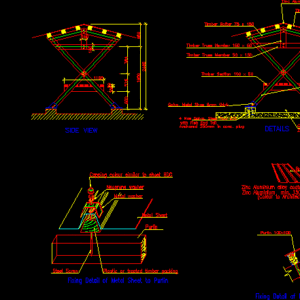

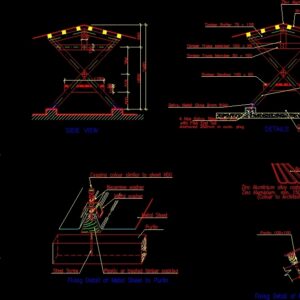

front view, top view, side view, bolt grade, purlin, rafter, fixing detail of purlin to rafter, zinc aluminium alloy coated structural steel sheet prepainted, plastic or treated timber packing, metal washer, capping colour similar to sheet hdg, fixing detail of metal sheet to purlin, zinc aluminium min. total on both sides, to architect’s, steel screw, neoprene washer, base steel thickness mm, metal sheet, purlin, details, timber rafter, timber section, timber truss member, galva. metal shoe thick, nos galva. steel rod, with fish end tail, anchored in conc. plug, concrete floor thk, reinf., mass concrete plug, timber truss member, zinc alum sheeting to details, zinc alum ridge capping, bolts grade, timber purlin

Raw text data extracted from CAD file:

\A1;700 \A1;1720 \A1;2000 \A1;2900 \A1;3000 \A1;150 \A1;50 \A1;1150 \A1;500 \A1;516 \A1;1800 \A1;660 \A1;2460 \A1;784 \A1;150 \A1;150 700.0 1720.098151742495 FRONT VIEW 1999.999999999971 2900.0 TOP VIEW 3000.093817999164 SIDE VIEW Bolt Grade 4.6 Purlin 100x100 Rafter 75 x 150 Fixing Detail of Purlin to rafter d10mm Zinc Aluminium alloy coated structural steel sheet prepainted Plastic or treated timber packing Metal washer Capping colour similar to sheet HDG Fixing Detail of Metal Sheet to Purlin Zinc Aluminium min. 150 gm/m total on both sides (Colour to Architect's approval) Steel Screw Neoprene washer Base steel thickness 0.6 mm 2 Metal Sheet Purlin DETAILS Timber Rafter 75 x 150 Timber Section 100 x 50 Timber Truss Member 150 x 50 Timber Truss Member 50 x 150 Galva. Metal Shoe 8mm thick 4 Nos Galva. Steel Rod d32 with Fish End Tail Anchored 250mm in conc. plug Concrete Floor 150mm thk 2100x2300 reinf. T08@150 B/W 4Nos Mass Concrete Plug 300x300x300 Timber Truss Member 100 x 150 Zinc Alum Sheeting to details Zinc Alum Ridge Capping Bolts Grade 4.6 d12mm 149.8826885363524 5 Timber Purlin 100 x 100 5 499.9999999994761 515.8208589855421 1800.000000000007 659.6082511179702 2459.608251117977 784.1791410149817 5 5
