Head And Piles DWG Detail for AutoCAD

Head And Piles DWG Detail for AutoCAD

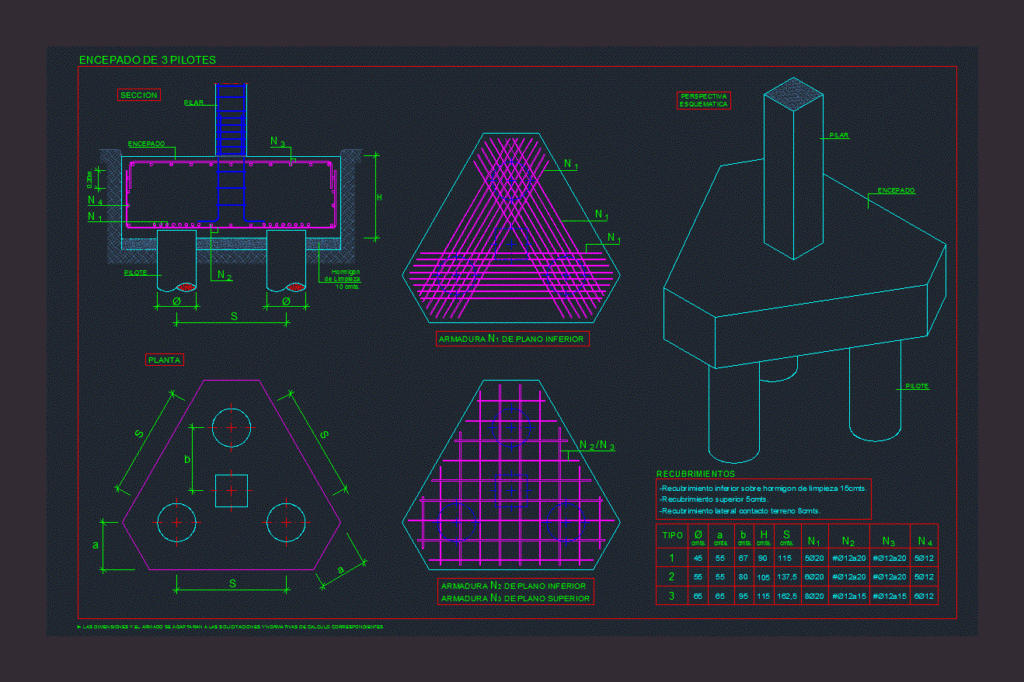

Detail of head and reinforced concrete piles

Drawing labels, details, and other text information extracted from the CAD file (Translated from Galician):

pillar, section, plant, get up, pilote, of cleaning, concrete, cmts., lower plane armor, lower plane armor, top-level armor, superior, coatings, lower on cleaning concrete, lateral contact ground, pitching balls, type, cmts., the dimensions the armed will adapt the corresponding normative calculation requests, pillar, get up, pilote, schematic perspective

Raw text data extracted from CAD file:

2 N 4 N H S N 3 a S a b S S 2 N 1 N d d PILAR SECCION PLANTA ENCEPADO PILOTE de Limpieza Hormigon 10 cmts. N 1 0.20m. 1 N 1 N ARMADURA N1 DE PLANO INFERIOR 3 N / ARMADURA N2 DE PLANO INFERIOR ARMADURA N3 DE PLANO SUPERIOR -Recubrimiento superior 5cmts. RECUBRIMIENTOS -Recubrimiento inferior sobre hormigon de limpieza 15cmts. -Recubrimiento lateral contacto terreno 8cmts. ENCEPADO DE 3 PILOTES 5d12 4 N N 2 1 N #d12a20 90 115 5d20 55 45 67 1 TIPO b H d a S cmts. cmts. cmts. cmts. cmts. N 3 #d12a20 #d12a20 105 137,5 6d20 55 55 80 2 #d12a20 6d12 #d12a15 115 162,5 8d20 65 65 95 3 #d12a15 5d12 \U+25BA LAS DIMENSIONES Y EL ARMADO SE ADAPTARAN A LAS SOLICITACIONES Y NORMATIVAS DE CALCULO CORRESPONDIENTES PILAR ENCEPADO PILOTE PERSPECTIVA ESQUEMATICA

Language	N/A
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	autocad, base, concrete, DETAIL, details, DWG, FOUNDATION, foundations, fundament, head, piles, reinforced
